Description
Brand - DODGE
Item Number - 069676 DODGE - F3R-IP-107LE
Category - IMPERIAL - IP Flange - Round with Labyrinth Seal (Expansion)
Type - Push-Pull Adapter
Bearing - 22208
Shaft Size (inch) - 1.4375
Part Name - F3R-IP-107LE

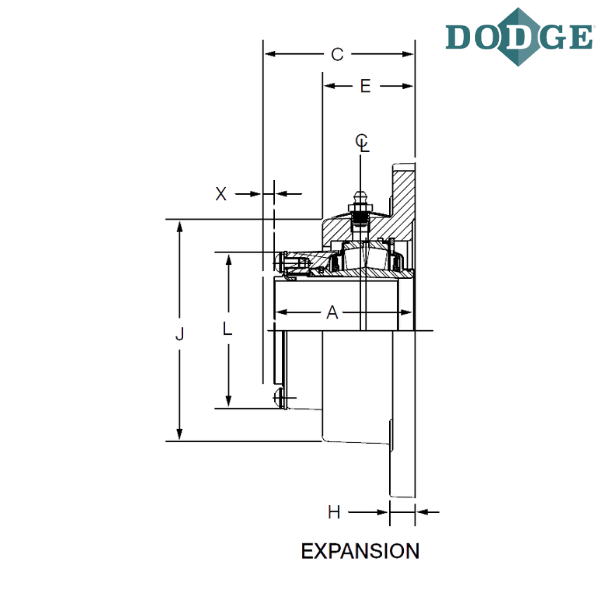

Length Through Bore (A) inch - 2.63

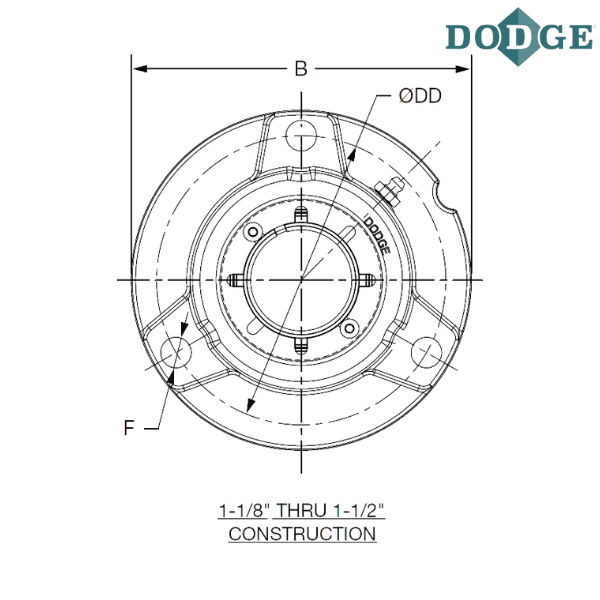

Overall Length (B) inch - 5.88
Thickness (C) inch - 2.86
Bolt Center to Center Length (D) inch - 3.53
DD (inch) - 5
E (inch) - 1.8
F-Bolt Diameter (inch) - 0.5*
H (inch) - 0.5
J (inch) - 3.75
L (inch) - 2.72
Total Expansion (X) inch - 0.1875
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request
Notes :
F3R - Flange Bearing 3 Bolt Cast Iron Round
IP - IMPERIAL
L - Labyrinth Metallic Seal
E - Expansion Type Bearing
* 3 Equally spaced bolt holes
** Images are for representation purposes only
