069667 DODGE - F4R-IP-208L

Brand - DODGE
Item Number - 069667 DODGE - F4R-IP-208L
Category - IMPERIAL - IP Flange - Round with Labyrinth Seal (Non-Expansion)
Type - Push-Pull Adapter
Bearing - 22213
Shaft Size (inch) - 2.5
Part Name - F4R-IP-208L

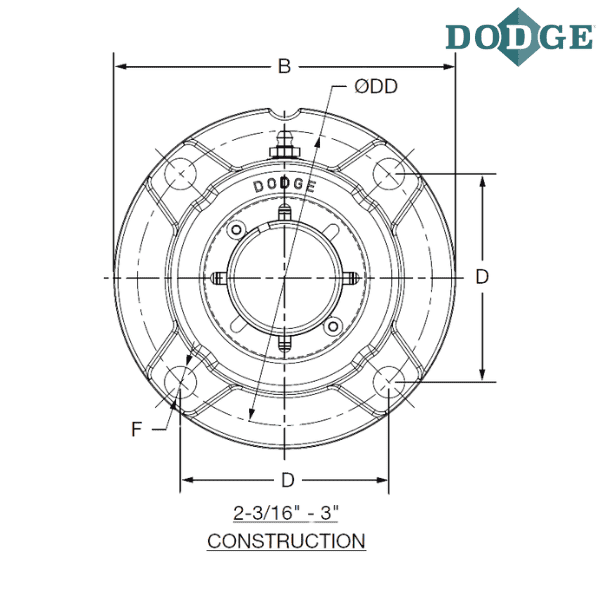

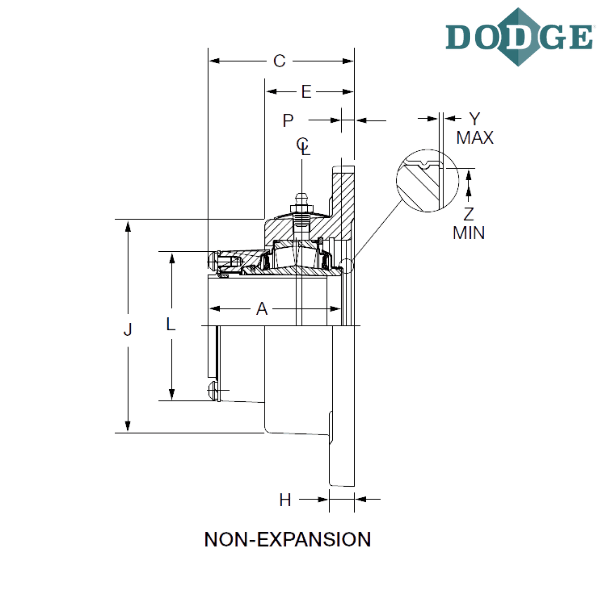

Length Through Bore (A) inch - 3.42
Overall Length (B) inch - 7.75
Thickness (C) inch - 3.73
Bolt Center to Center Length (D) inch - 4.77
Bolt Circle (DD) inch - 6.75
E (inch) - 2.38
F-Bolt Diameter (inch) - 0.625
H (inch) - 0.64
J (inch) - 5.38
L (inch) - 3.88
P (inch) - 0.31
Y (inch) - 0.03
Z (inch) - 2.95
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
F4R - Flange Bearing 4 Bolt Cast Iron Round
IP - IMPERIAL
L - Labyrinth Metallic Seal

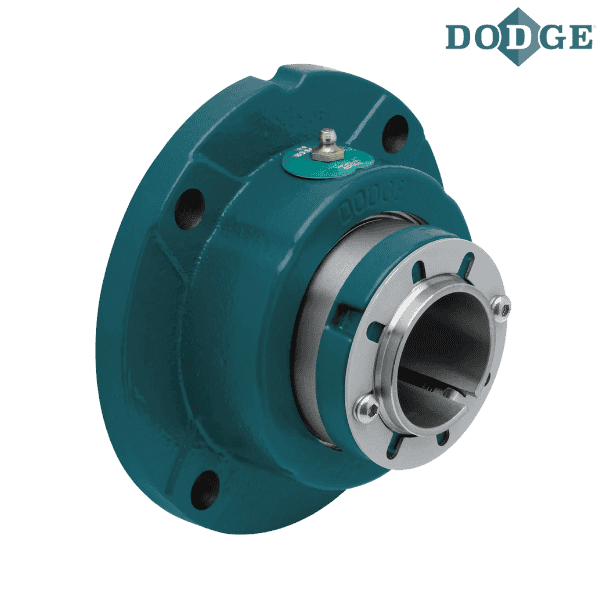

** Images are for representation purposes only
