069643 DODGE - F4R-IP-204RE

Brand - DODGE
Item Number - 069643 DODGE - F4R-IP-204RE
Category - IMPERIAL - IP Flange - Round with Trident Seal (Expansion)
Type - Push-Pull Adapter
Bearing - 22211
Shaft Size (inch) - 2.25
Part Name - F4R-IP-204RE

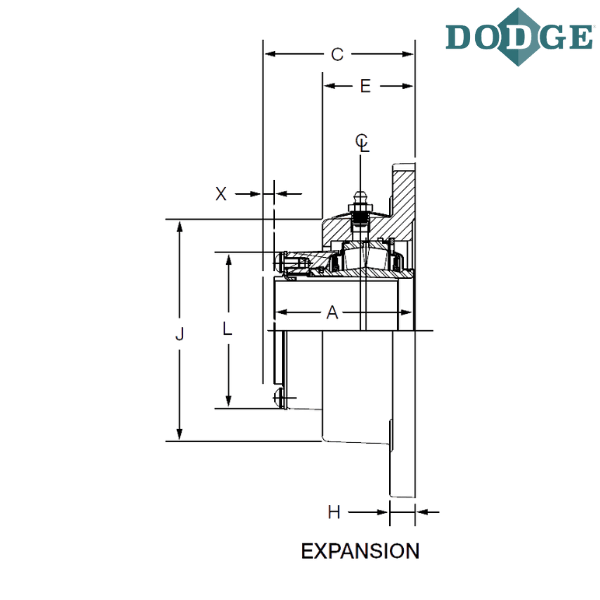

Length Through Bore (A) inch - 3.03

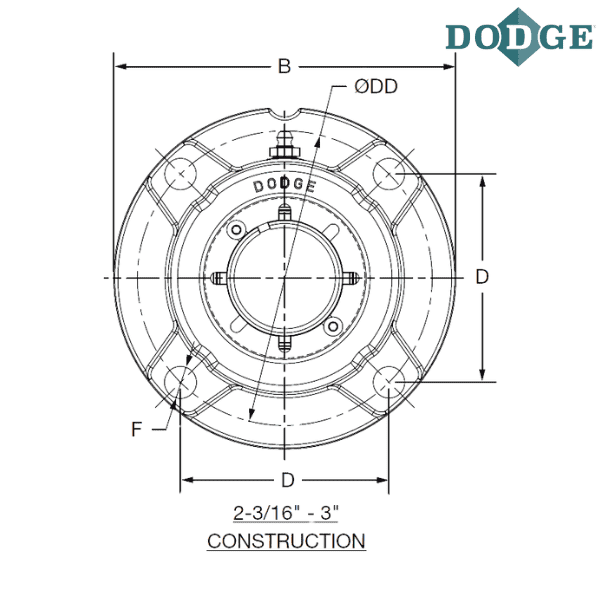

Overall Length (B) inch - 7.38
Thickness (C) inch - 3.34
Bolt Center to Center Length (D) inch - 4.5
Bolt Circle (DD) inch - 6.38
E (inch) - 2.05
F-Bolt Diameter (inch) - 0.625
H (inch) - 0.56
J (inch) - 4.8
L (inch) - 3.5
Total Expansion (X) inch - 0.25
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
F4R - Flange Bearing 4 Bolt Cast Iron Round
IP - IMPERIAL
R - TRIDENT Triple Lip Rubbing Seal
E - Expansion Type Bearing

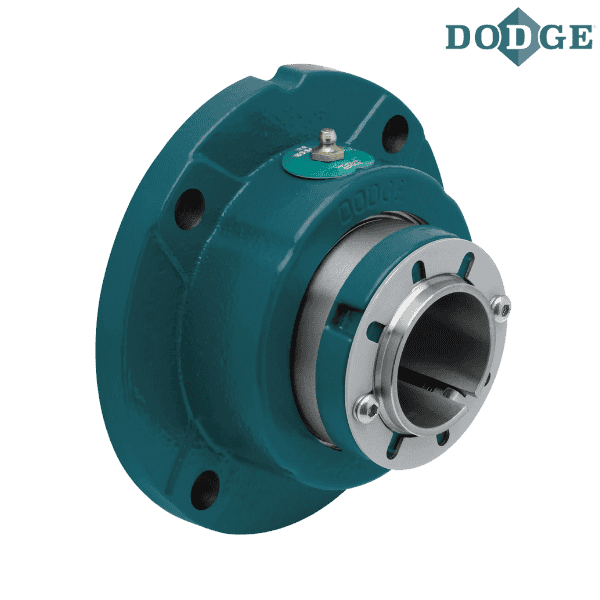

** Images are for representation purposes only
