069610 DODGE - F4R-IP-212R

Brand - DODGE
Item Number - 069610 DODGE - F4R-IP-212R
Category - IMPERIAL - IP Flange - Round with Trident Seal (Non-Expansion)
Type - Push-Pull Adapter
Bearing - 22215
Shaft Size (inch) - 2.75
Part Name - F4R-IP-212R

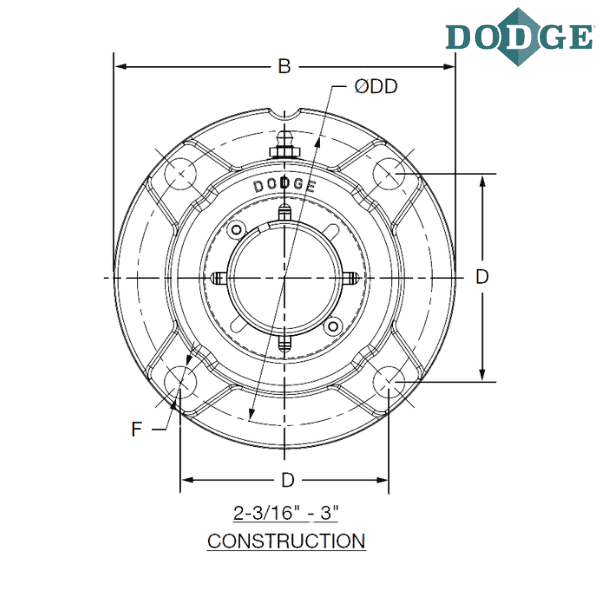

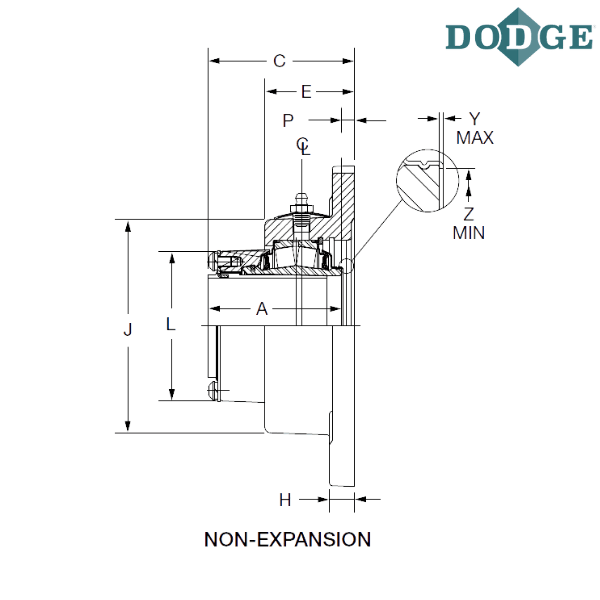

Length Through Bore (A) inch - 3.5
Overall Length (B) inch - 9.25
Thickness (C) inch - 3.81
Bolt Center to Center Length (D) inch - 5.56
Bolt Circle (DD) inch - 7.88
E (inch) - 2.39
F-Bolt Diameter (inch) - 0.75
H (inch) - 0.75
J (inch) - 6.25
L (inch) - 4.28
P (inch) - 0.31
Y (inch) - 0.03
Z (inch) - 3.47
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
F4R - Flange Bearing 4 Bolt Cast Iron Round
IP - IMPERIAL
R - TRIDENT Triple Lip Rubbing Seal

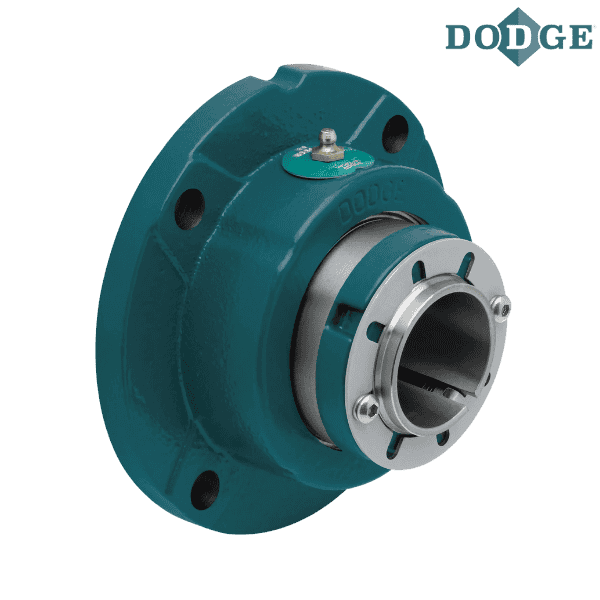

** Images are for representation purposes only
