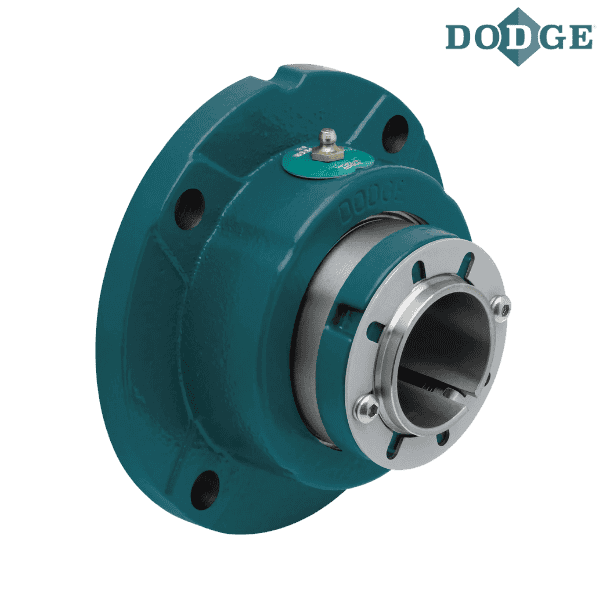

069598 DODGE - F4R-IP-110R

Brand - DODGE
Item Number - 069598 DODGE - F4R-IP-110R
Category - IMPERIAL - IP Flange - Round with Trident Seal (Non-Expansion)
Type - Push-Pull Adapter
Bearing - 22209
Shaft Size (inch) - 1.625
Part Name - F4R-IP-110R

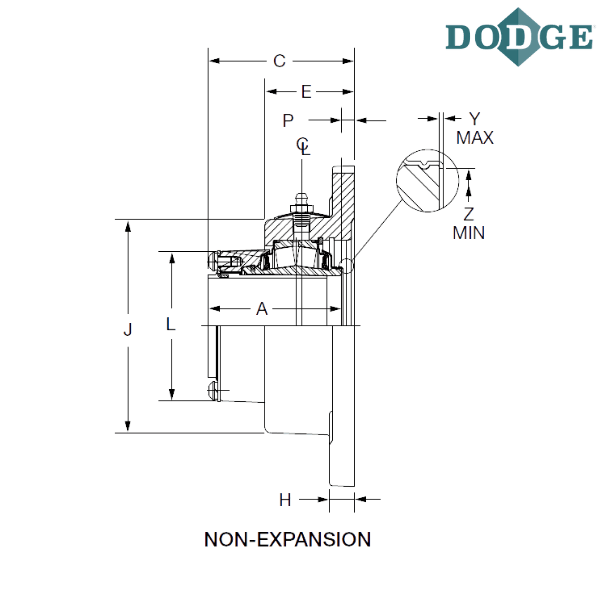

Length Through Bore (A) inch - 2.81

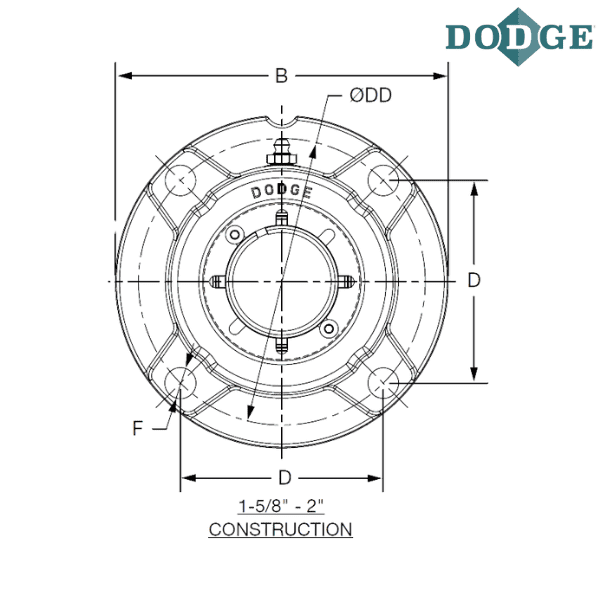

Overall Length (B) inch - 6.38
Thickness (C) inch - 3.11
Bolt Center to Center Length (D) inch - 3.89
DD (inch) - 5.5
E (inch) - 1.89
F-Bolt Diameter (inch) - 0.5*
H (inch) - 0.5
J (inch) - 4.25
L (inch) - 3
P (inch) - 0.27
Y (inch) - 0.02
Z (inch) - 2.08
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
F4R - Flange Bearing 4 Bolt Cast Iron Round
IP - IMPERIAL
R - TRIDENT Triple Lip Rubbing Seal

* 3 Equally spaced bolt holes

** Images are for representation purposes only
