069583 DODGE - P4B-IP-307LE

Brand - DODGE
Item Number - 069583 DODGE - P4B-IP-307LE
Category - IMPERIAL - IP Pillow Block with Labyrinth Seal (Expansion)
Type - Push-Pull Adapter
Bearing - 22218
Shaft Size (inch) - 3.4375
Part Name - P4B-IP-307LE

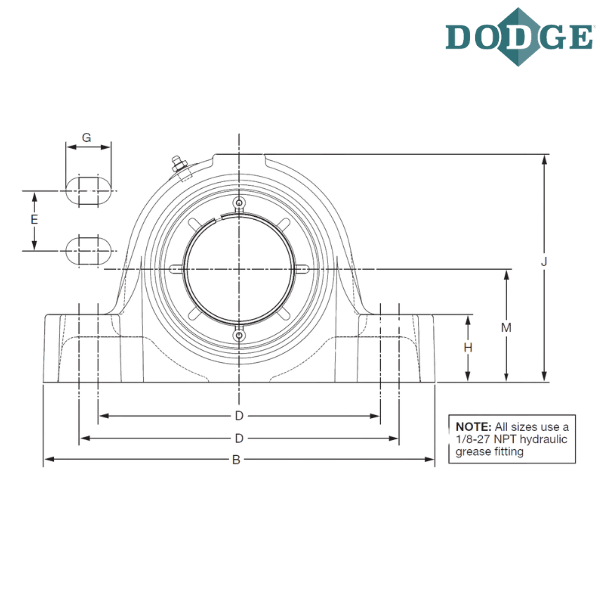

Length Through Bore (A) inch - 4.17
Overall Length (B) inch - 13
Width (C) inch - 4.13
Bolt to Bolt Minimum Distance (D min) inch - 9.38
Bolt to Bolt Maximum Distance (D max) inch - 10.63
E (inch) - 2
F-Bolt Diameter (inch) - 0.75
G (inch) - 1.5
H (inch) - 2.25
Overall Height (J) inch - 7.56
L (inch) - 5
Base to Center Height (M) inch - 3.75
S (inch) - 2.73

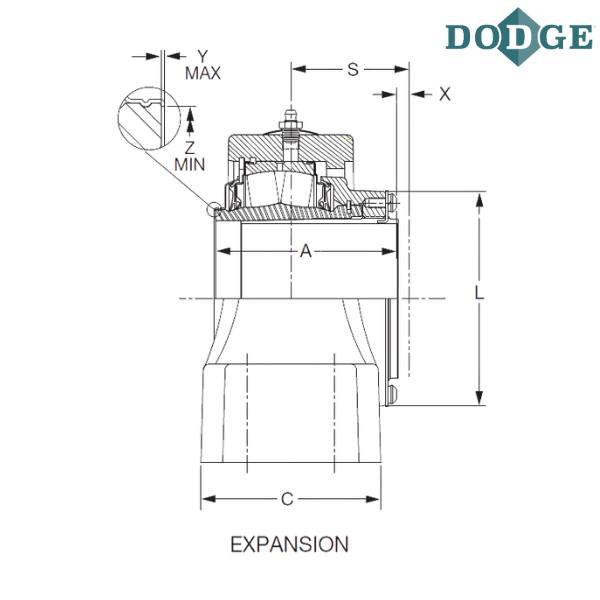

Total Expansion (X) inch - 0.25
Y (inch) - 0.03
Z (inch) - 4.05
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
P4B - Pillow Block 4 Bolt Base
IP - IMPERIAL
L - Labyrinth Metallic Seal
E - Expansion Type Bearing

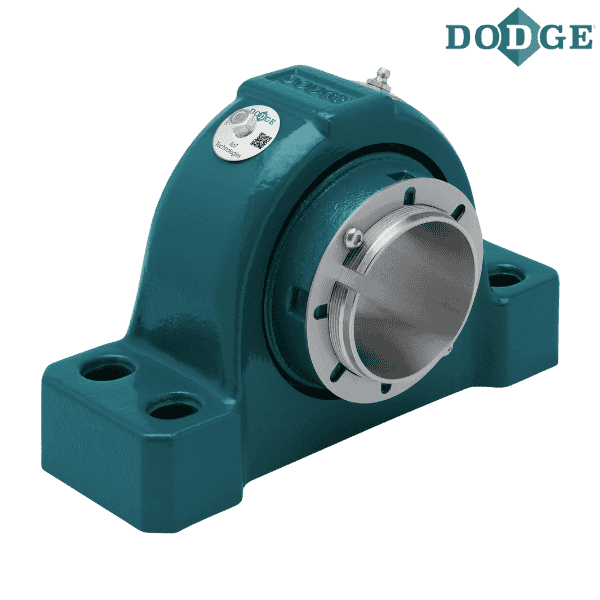

** Images are for representation purposes only
