069573 DODGE - P4B-IP-500L

Brand - DODGE
Item Number - 069573 DODGE - P4B-IP-500L
Category - IMPERIAL - IP Pillow Block with Labyrinth Seal (Non-Expansion)
Type - Push-Pull Adapter
Bearing - 22226
Shaft Size (inch) - 5
Part Name - P4B-IP-500L

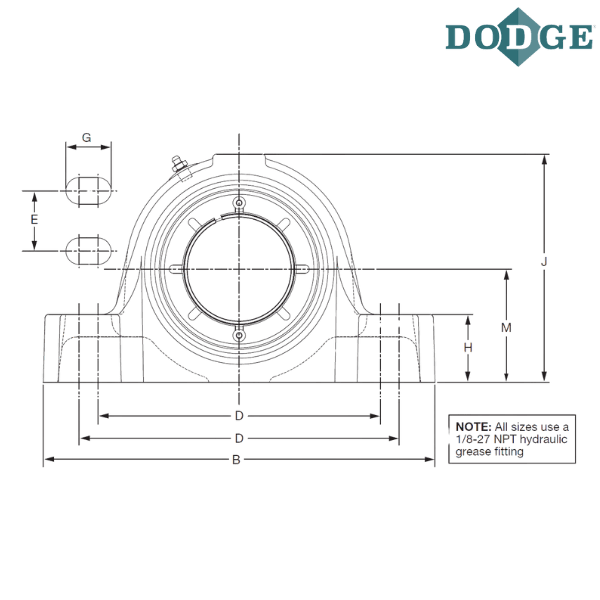

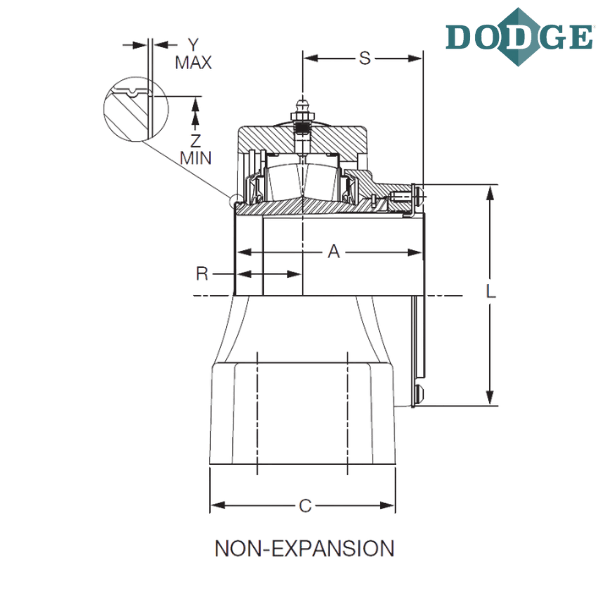

Length Through Bore (A) inch - 5.98
Overall Length (B) inch - 18.63
Width (C) inch - 5.38
Bolt to Bolt Minimum Distance (D min) inch - 15
Bolt to Bolt Maximum Distance (D max) inch - 16
E (inch) - 2.75
F-Bolt Diameter (inch) - 0.875
G (inch) - 1.5
H (inch) - 3
Overall Height (J) inch - 11.13
L (inch) - 7.63
Base to Center Height (M) inch - 5.5
R (inch) - 1.91
S (inch) - 4.08
Y (inch) - 0.04
Z (inch) - 5.84
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
P4B - Pillow Block 4 Bolt Base
IP - IMPERIAL
L - Labyrinth Metallic Seal

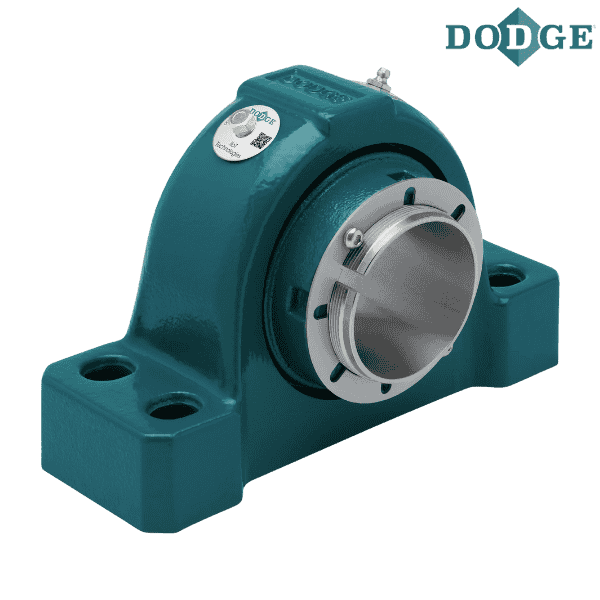

** Images are for representation purposes only
