069570 DODGE - P4B-IP-407L

Brand - DODGE
Item Number - 069570 DODGE - P4B-IP-407L
Category - IMPERIAL - IP Pillow Block with Labyrinth Seal (Non-Expansion)
Type - Push-Pull Adapter
Bearing - 22222
Shaft Size (inch) - 4.4375
Part Name - P4B-IP-407L
Length Through Bore (A) inch - 5.23

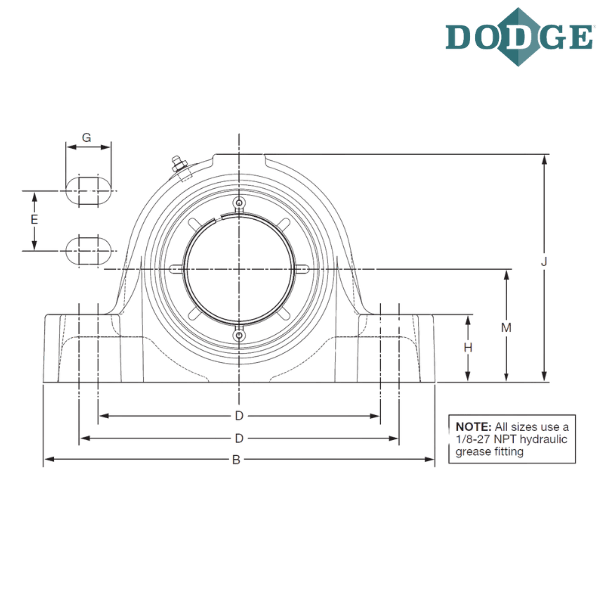

Overall Length (B) inch - 16.5
Width (C) inch - 4.75
Bolt to Bolt Minimum Distance (D min) inch - 12
Bolt to Bolt Maximum Distance (D max) inch - 14
E (inch) - 2.5
F-Bolt Diameter (inch) - 0.75
G (inch) - 1.38
H (inch) - 2.75
Overall Height (J) inch - 9.63
L (inch) - 6.44
Base to Center Height (M) inch - 4.75
R (inch) - 1.75
S (inch) - 3.48
Y (inch) - 0.04
Z (inch) - 5
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
P4B - Pillow Block 4 Bolt Base
IP - IMPERIAL
L - Labyrinth Metallic Seal

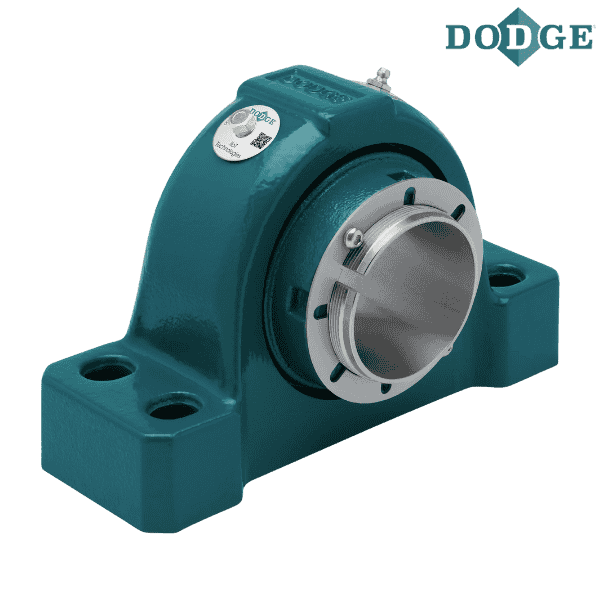

** Images are for representation purposes only
