069554 DODGE - P4B-IP-415RE

Brand - DODGE
Item Number - 069554 DODGE - P4B-IP-415RE
Category - IMPERIAL - IP Pillow Block with Trident Seal (Expansion)
Type - Push-Pull Adapter
Bearing - 22226
Shaft Size (inch) - 4.9375
Part Name - P4B-IP-415RE
Length Through Bore (A) inch - 5.98
Overall Length (B) inch - 18.63
Width (C) inch - 5.38
Bolt to Bolt Minimum Distance (D min) inch - 15
Bolt to Bolt Maximum Distance (D max) inch - 16
E (inch) - 2.75
F-Bolt Diameter (inch) - 0.875
G (inch) - 1.5
H (inch) - 3
Overall Height (J) inch - 11.13
L (inch) - 7.63
Base to Center Height (M) inch - 5.5
S (inch) - 4.08

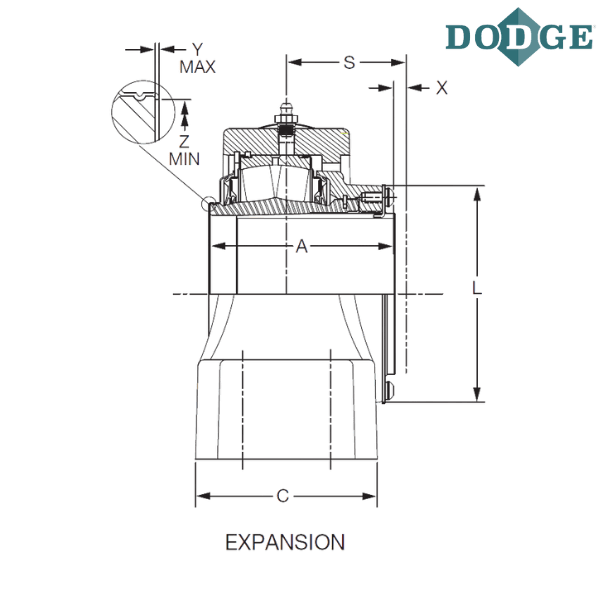

Total Expansion (X) inch - 0.375
Y (inch) - 0.04
Z (inch) - 5.84
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
P4B - Pillow Block 4 Bolt Base
IP - IMPERIAL
R - TRIDENT Triple Lip Rubbing Seal
E - Expansion Type Bearing

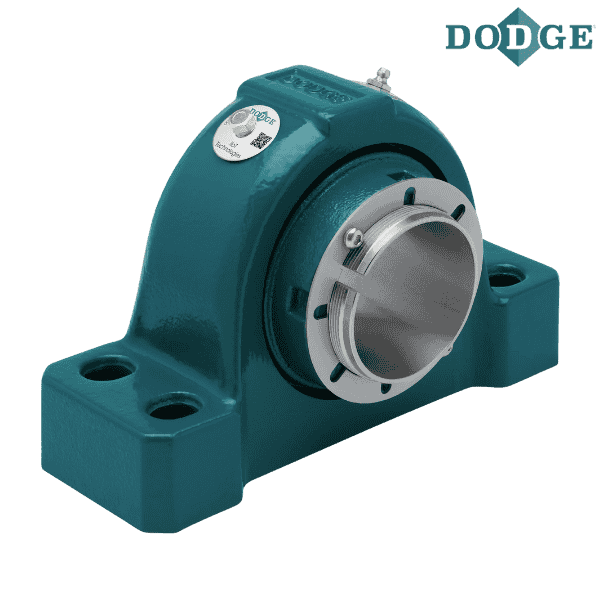

** Images are for representation purposes only
