069544 DODGE - P4B-IP-300RE

Brand - DODGE
Item Number - 069544 DODGE - P4B-IP-300RE
Category - IMPERIAL - IP Pillow Block with Trident Seal (Expansion)
Type - Push-Pull Adapter
Bearing - 22215
Shaft Size (inch) - 3
Part Name - P4B-IP-300RE

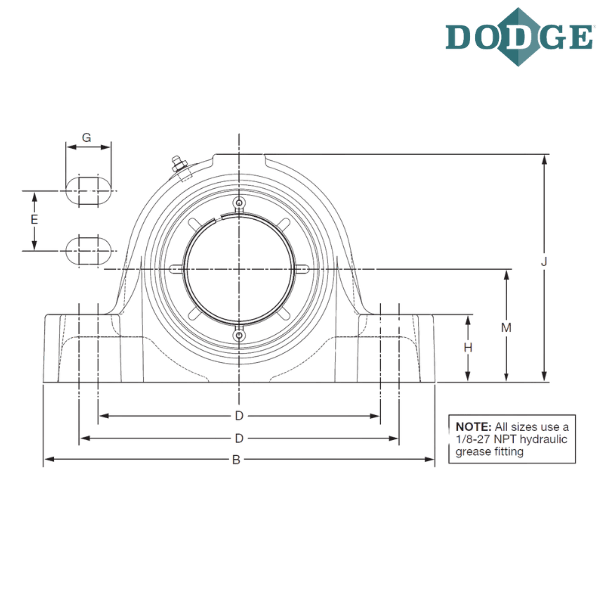

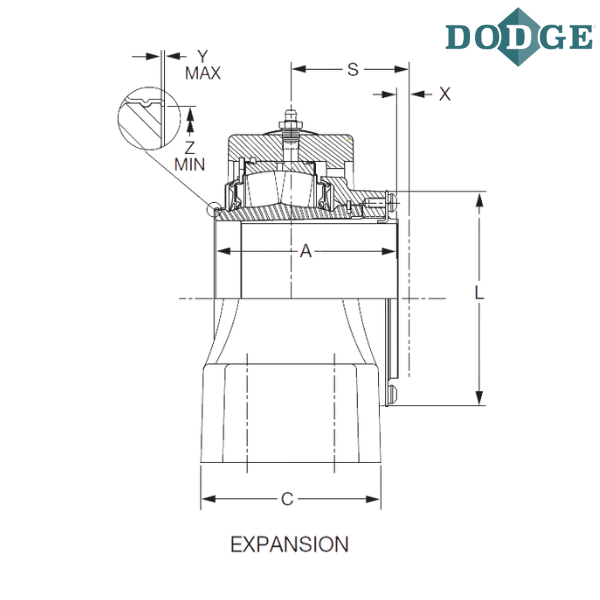

Length Through Bore (A) inch - 3.5
Overall Length (B) inch - 10.44
Width (C) inch - 3.75
Bolt to Bolt Minimum Distance (D min) inch - 7.94
Bolt to Bolt Maximum Distance (D max) inch - 8.31
E (inch) - 1.88
F-Bolt Diameter (inch) - 0.625
G (inch) - 0.94
H (inch) - 1.88
Overall Height (J) inch - 6.44
L (inch) - 4.28
Base to Center Height (M) inch - 3.25
S (inch) - 2.41
Total Expansion (X) inch - 0.25
Y (inch) - 0.03
Z (inch) - 3.47
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
P4B - Pillow Block 4 Bolt Base
IP - IMPERIAL
R - TRIDENT Triple Lip Rubbing Seal
E - Expansion Type Bearing

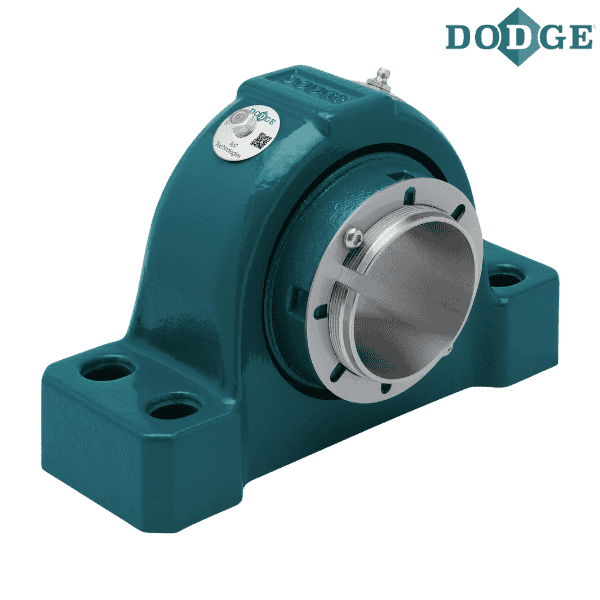

** Images are for representation purposes only
