069510 DODGE - P2B-IP-315LE

Brand - DODGE
Item Number - 069510 DODGE - P2B-IP-315LE
Category - IMPERIAL - IP Pillow Block 2-Bolt with Labyrinth Seal (Expansion)
Type - Push-Pull Adapter
Bearing - 22220
Shaft Size (inch) - 3.9375
Part Name - P2B-IP-315LE

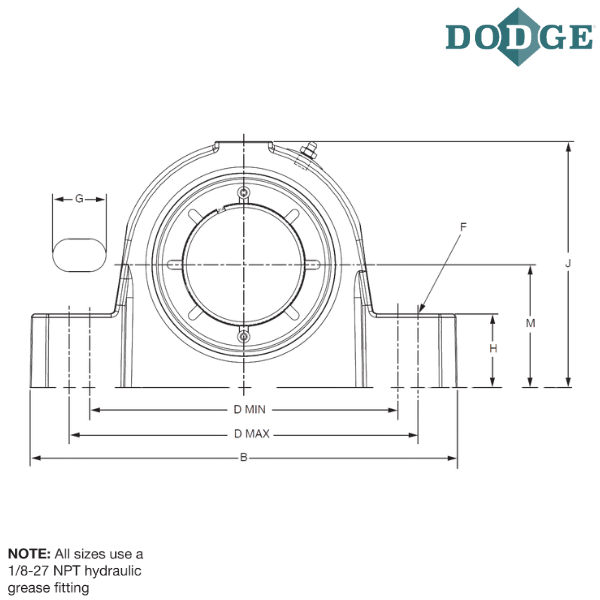

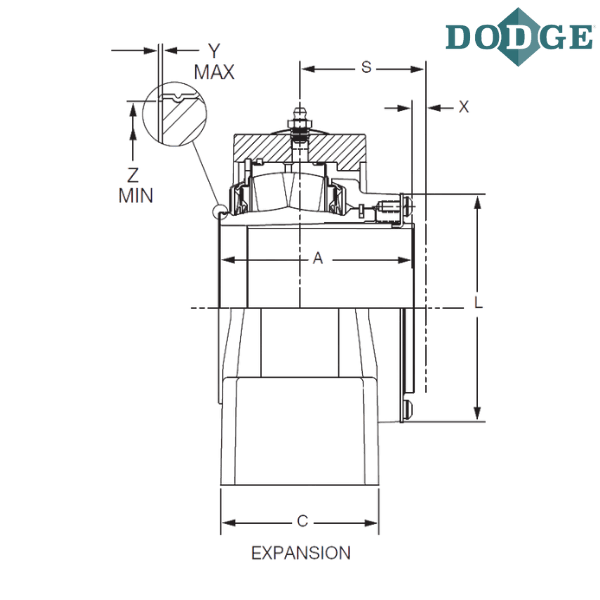

Length Through Bore (A) inch - 4.7
Overall Length (B) inch - 15.25
Width (C) inch - 3.91
Bolt to Bolt Minimum Distance (D min) inch - 10.63
Bolt to Bolt Maximum Distance (D max) inch - 12.8
F-Bolt Diameter (inch) - 1
G (inch) - 2.25
H (inch) - 2.44
Overall Height (J) inch - 8.38
L (inch) - 5.56
Base to Center Height (M) inch - 4.25
S (inch) - 3.06
Total Expansion (X) inch - 0.3125
Y (inch) - 0.03
Z (inch) - 4.5
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
P2B - Pillow Block 2 Bolt Base
IP - IMPERIAL
L - Labyrinth Metallic Seal
E - Expansion Type Bearing

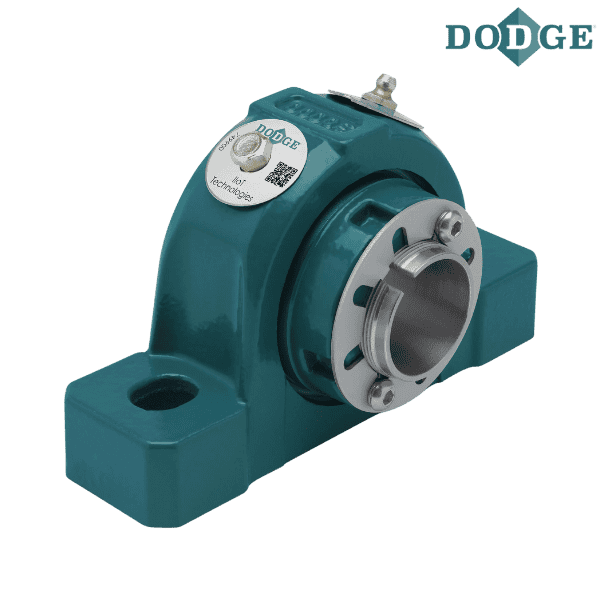

** Images are for representation purposes only
