069496 DODGE - P2B-IP-203LE

Brand - DODGE
Item Number - 069496 DODGE - P2B-IP-203LE
Category - IMPERIAL - IP Pillow Block 2-Bolt with Labyrinth Seal (Expansion)
Type - Push-Pull Adapter
Bearing - 22211
Shaft Size (inch) - 2.1875
Part Name - P2B-IP-203LE

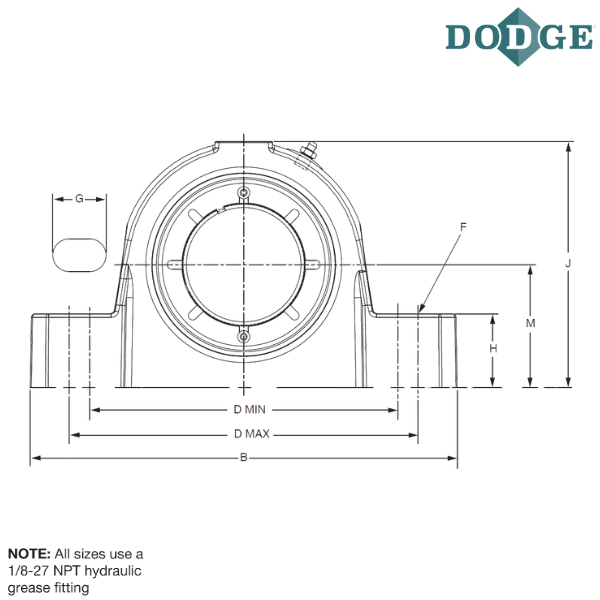

Length Through Bore (A) inch - 3.03
Overall Length (B) inch - 8.88
Width (C) inch - 2.63
Bolt to Bolt Minimum Distance (D min) inch - 6.56
Bolt to Bolt Maximum Distance (D max) inch - 6 .94
F-Bolt Diameter (inch) - 0.625
G (inch) - 0.95
H (inch) - 1.5
Overall Height (J) inch - 5 .00
L (inch) - 3 .50
Base to Center Height (M) inch - 2.5

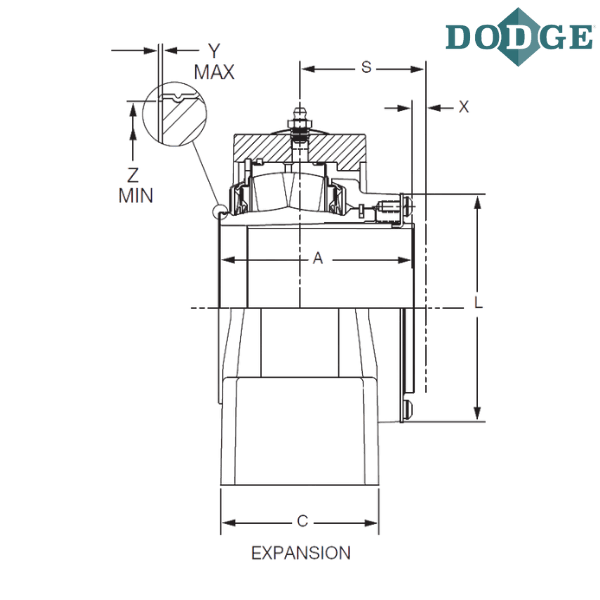

S (inch) - 2.13
Total Expansion (X) inch - 0.25
Y (inch) - 0.03
Z (inch) - 2.6
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
P2B - Pillow Block 2 Bolt Base
IP - IMPERIAL
L - Labyrinth Metallic Seal
E - Expansion Type Bearing

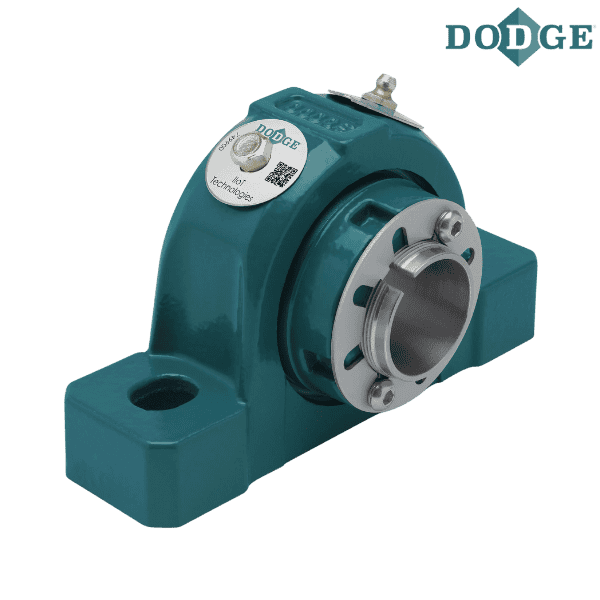

** Images are for representation purposes only
