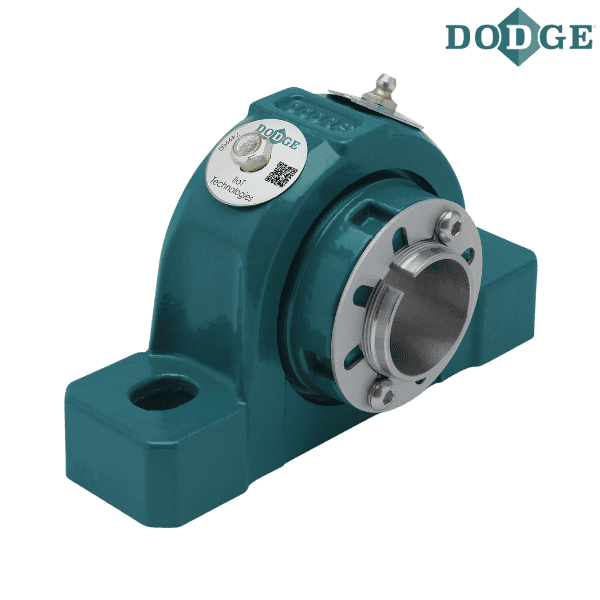

069477 DODGE - P2B-IP-303L

Brand - DODGE
Item Number - 069477 DODGE - P2B-IP-303L
Category - IMPERIAL - IP Pillow Block 2-Bolt with Labyrinth Seal (Non-Expansion)
Type - Push-Pull Adapter
Bearing - 22218
Shaft Size (inch) - 3.1875
Part Name - P2B-IP-303L
Length Through Bore (A) inch - 4.17
Overall Length (B) inch - 13
Width (C) inch - 3.42
Bolt to Bolt Minimum Distance (D min) inch - 9.38
Bolt to Bolt Maximum Distance (D max) inch - 10.63
F-Bolt Diameter (inch) - 0.875
G (inch) - 1.63
H (inch) - 2.25
Overall Height (J) inch - 7.5
L (inch) - 5
Base to Center Height (M) inch - 3.75
R (inch) - 1.48
S (inch) - 2.69
Y (inch) - 0.03
Z (inch) - 4.05
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
P2B - Pillow Block 2 Bolt Base
IP - IMPERIAL
L - Labyrinth Metallic Seal

** Images are for representation purposes only
