069425 DODGE - P2B-IP-311R

Brand - DODGE
Item Number - 069425 DODGE - P2B-IP-311R
Category - IMPERIAL - IP Pillow Block 2-Bolt with Trident Seal (Non-Expansion)
Type - Push-Pull Adapter
Bearing - 22220
Shaft Size (inch) - 3.6875
Part Name - P2B-IP-311R

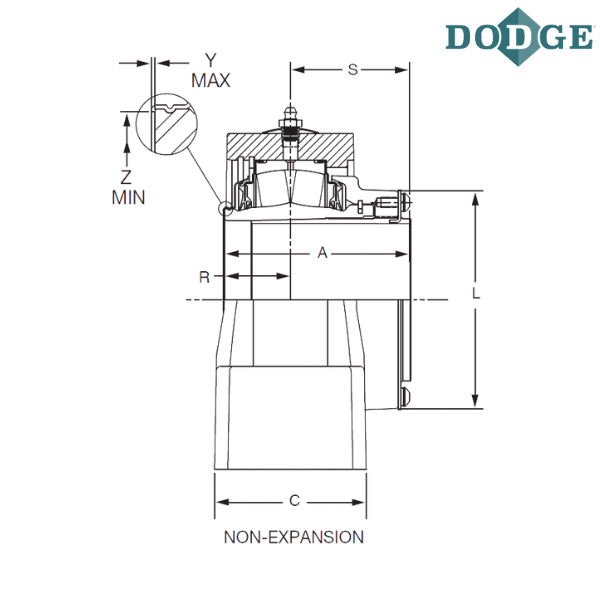

Length Through Bore (A) inch - 4.7

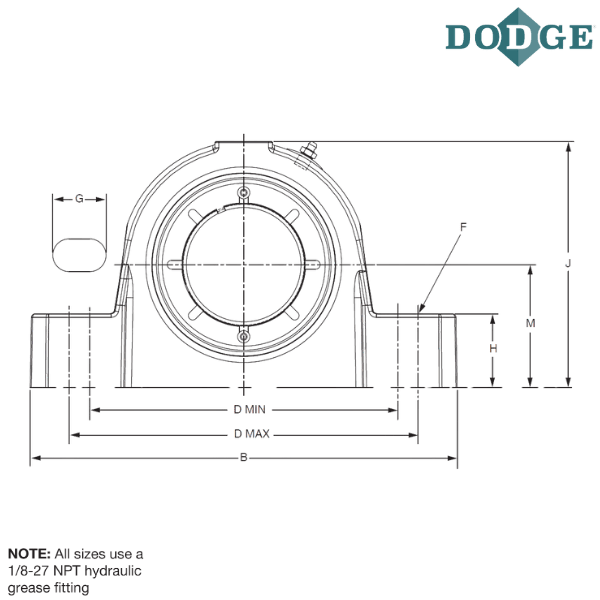

Overall Length (B) inch - 15.25
Width (C) inch - 3.91
Bolt to Bolt Minimum Distance (D min) inch - 10.63
Bolt to Bolt Maximum Distance (D max) inch - 12.8
F-Bolt Diameter (inch) - 1
G (inch) - 2.25
H (inch) - 2.44
Overall Height (J) inch - 8.38
L (inch) - 5.56
M (inch) - 4.25
R (inch) - 1.64
S (inch) - 3.06
Y (inch) - 0.03
Z (inch) - 4.5
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
P2B - Pillow Block 2 Bolt Base
IP - IMPERIAL
R - TRIDENT Triple Lip Rubbing Seal

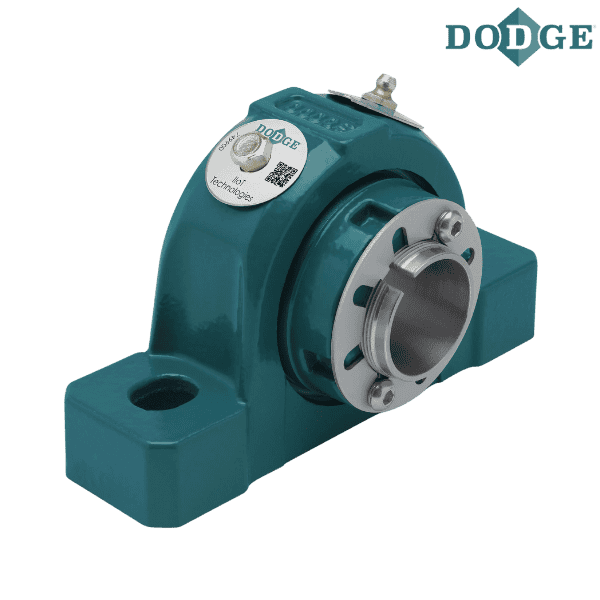

** Images are for representation purposes only
