069411 DODGE - P2B-IP-200R

Brand - DODGE
Item Number - 069411 DODGE - P2B-IP-200R
Category - IMPERIAL - IP Pillow Block 2-Bolt with Trident Seal (Non-Expansion)
Type - Push-Pull Adapter
Bearing - 22210
Shaft Size (inch) - 2
Part Name - P2B-IP-200R

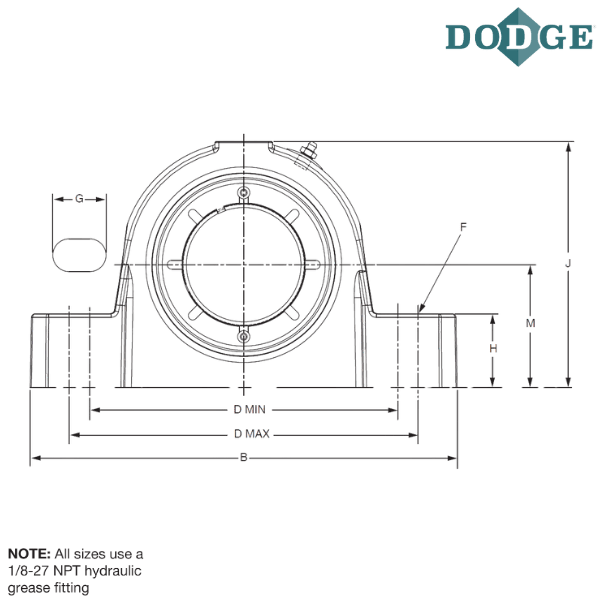

Length Through Bore (A) inch - 2.86
Overall Length (B) inch - 8.38
Width (C) inch - 2.5
Bolt to Bolt Minimum Distance (D min) inch - 6.06
Bolt to Bolt Maximum Distance (D max) inch - 6.44
F-Bolt Diameter (inch) - 0.625
G (inch) - 0.95
H (inch) - 1.31
Overall Height (J) inch - 4.56
L (inch) - 3.28
Base to Center Height (M) inch - 2 .25
R (inch) - 0.86
S (inch) - 2
Y (inch) - 0.02
Z (inch) - 2.3
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
P2B - Pillow Block 2 Bolt Base
IP - IMPERIAL
R - TRIDENT Triple Lip Rubbing Seal

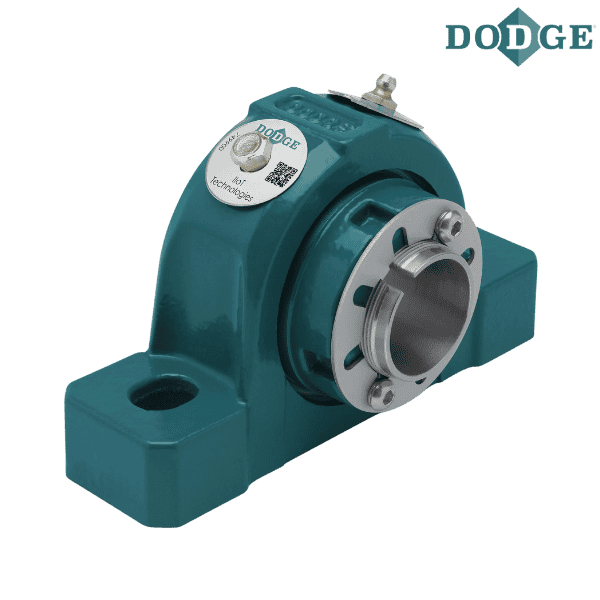

** Images are for representation purposes only
