069403 DODGE - P2B-IP-106R

Brand - DODGE
Item Number - 069403 DODGE - P2B-IP-106R
Category - IMPERIAL - IP Pillow Block 2-Bolt with Trident Seal (Non-Expansion)
Type - Push-Pull Adapter
Bearing - 22208
Shaft Size (inch) - 1.375
Part Name - P2B-IP-106R

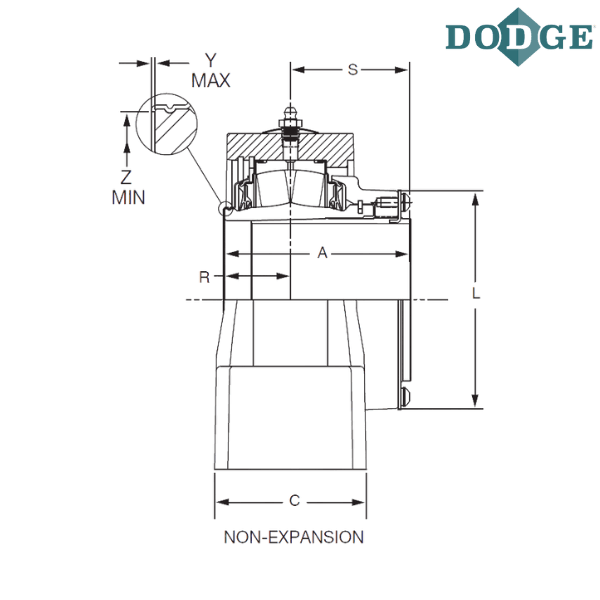

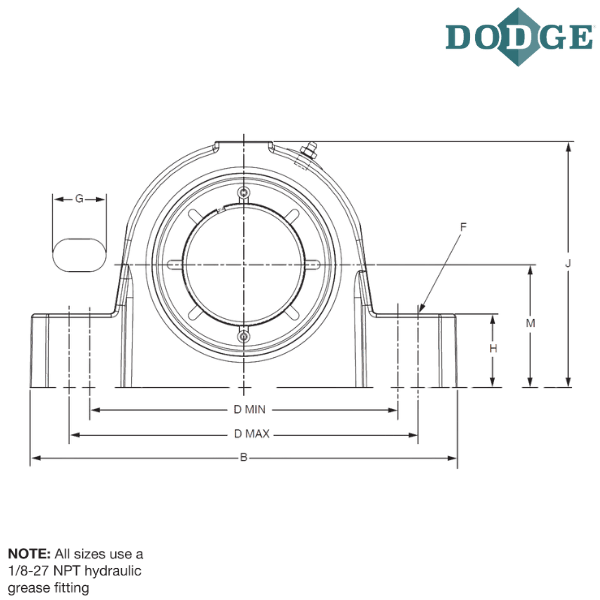

Length Through Bore (A) inch - 2 .63
Overall Length (B) inch - 6.8
Width (C) inch - 1 .95
Bolt to Bolt Minimum Distance (D min) inch - 4.81
Bolt to Bolt Maximum Distance (D max) inch - 5.2
F-Bolt Diameter (inch) - 0.5
G (inch) - 0.81
H (inch) - 1.13
Overall Height (J) inch - 3.88
L (inch) - 2.72
Base to Center Height (M) inch - 1.88
R (inch) - 0.88
S (inch) - 1.75
Y (inch) - 0.02
Z (inch) - 1.8
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
P2B - Pillow Block 2 Bolt Base
IP - IMPERIAL
R - TRIDENT Triple Lip Rubbing Seal

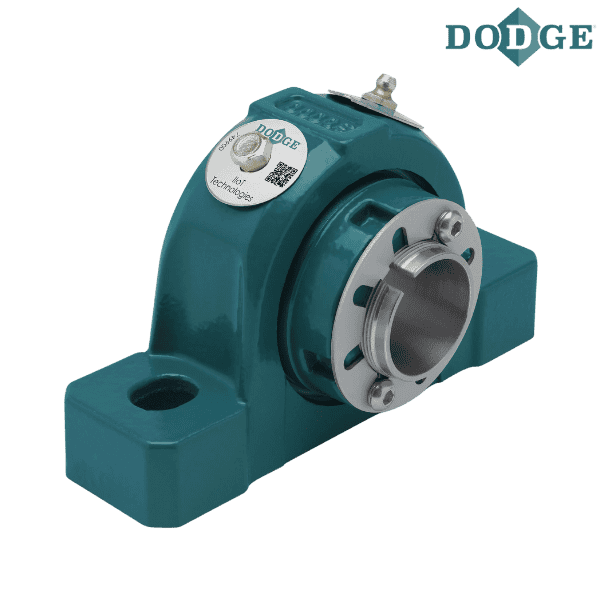

** Images are for representation purposes only
