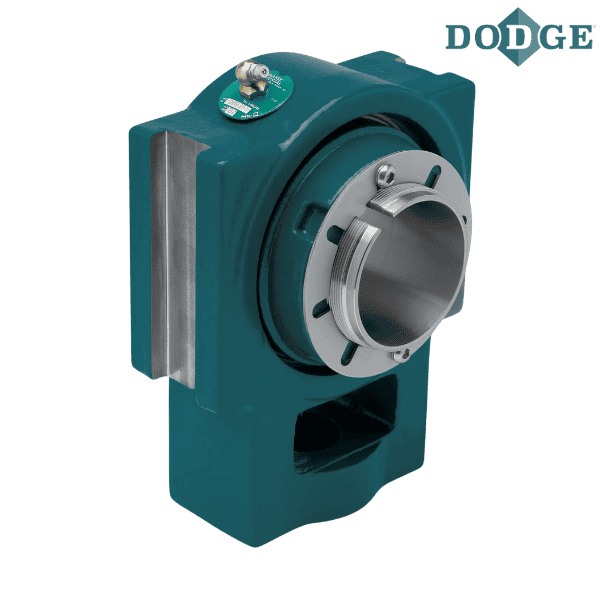

069394 DODGE - WSTU-IP-315RE

Brand - DODGE
Item Number - 069394 DODGE - WSTU-IP-315RE
Category - IMPERIAL - IP Wide Slot Take-Up (Trident Seal - Expansion)
Type - Push-Pull Adapter
Bearing - 22220
Shaft Size (inch) - 3.9375
Take-Up Frame - CP-810
Part Name - WSTU-IP-315RE

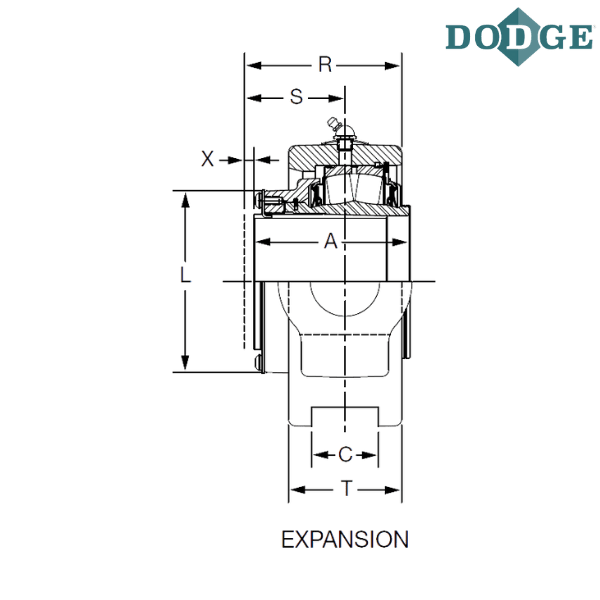

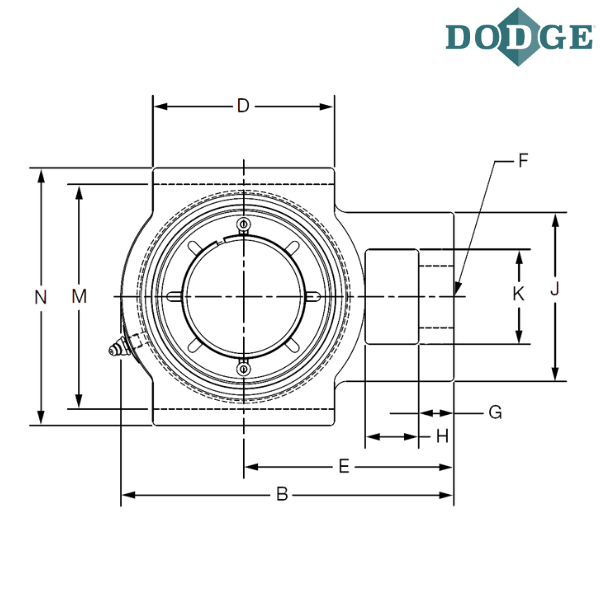

Length Through Bore (A) inch - 4.7
Overall Length (B) inch - 12.56
C (inch) - 2.06
D (inch) - 7
E (inch) - 8.38
F (inch) - 2.125
G (inch) - 2.06
H (inch) - 2.13
J (inch) - 6
K (inch) - 3.38
L (inch) - 5.56
M (inch) - 8.63
N (inch) - 9.44
R (inch) - 4.8
S (inch) - 3.05
T (inch) - 3.44
Total Expansion (X) inch - 0.3125
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
WSTU - Wide Slot Take-up Bearing for use in Center Pull Frame
IP - IMPERIAL
R - TRIDENT Triple Lip Rubbing Seal
E - Expansion Type Bearing

** Images are for representation purposes only
