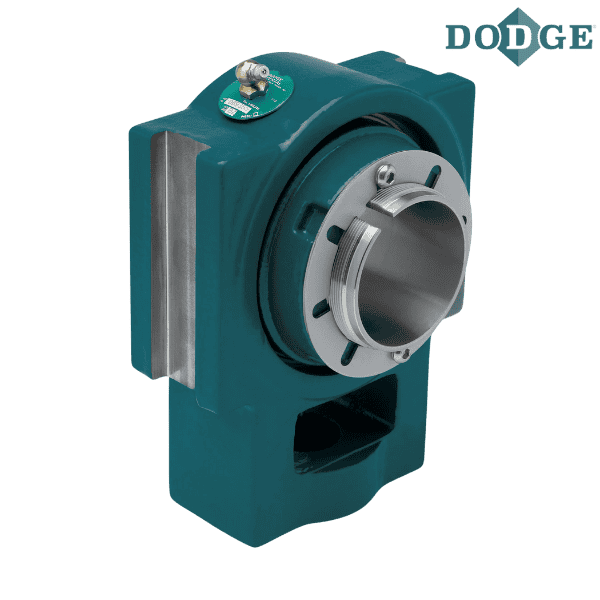

069392 DODGE - WSTU-IP-308RE

Brand - DODGE
Item Number - 069392 DODGE - WSTU-IP-308RE
Category - IMPERIAL - IP Wide Slot Take-Up (Trident Seal - Expansion)
Type - Push-Pull Adapter
Bearing - 22218
Shaft Size (inch) - 3.5
Take-Up Frame - CP-613
Part Name - WSTU-IP-308RE

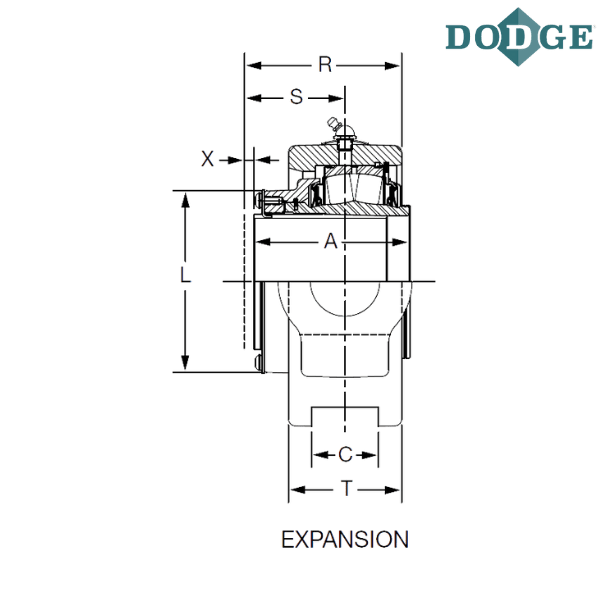

Length Through Bore (A) inch - 4.16

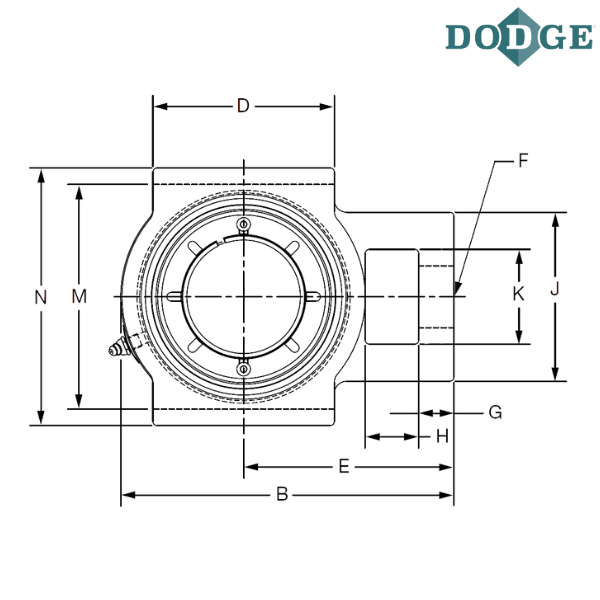

Overall Length (B) inch - 10.06
C (inch) - 1.81
D (inch) - 5.5
E (inch) - 6.38
F (inch) - 1.875
G (inch) - 1.06
H (inch) - 1.63
J (inch) - 5.13
K (inch) - 2.88
L (inch) - 5
M (inch) - 6.81
N (inch) - 7.81
R (inch) - 4.22
S (inch) - 2.69
T (inch) - 3.06
Total Expansion (X) inch - 0.25
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
WSTU - Wide Slot Take-up Bearing for use in Center Pull Frame
IP - IMPERIAL
R - TRIDENT Triple Lip Rubbing Seal
E - Expansion Type Bearing

** Images are for representation purposes only
