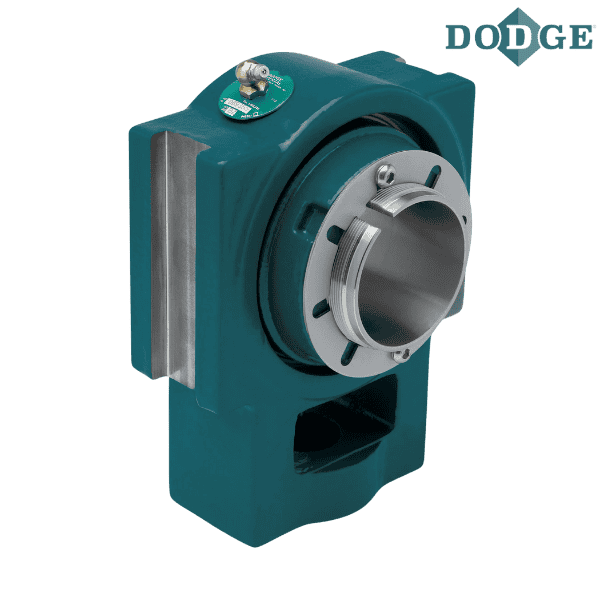

069377 DODGE - WSTU-IP-114RE

Brand - DODGE
Item Number - 069377 DODGE - WSTU-IP-114RE
Category - IMPERIAL - IP Wide Slot Take-Up (Trident Seal - Expansion)
Type - Push-Pull Adapter
Bearing - 22210
Shaft Size (inch) - 1.875
Take-Up Frame - CP-400
Part Name - WSTU-IP-114RE

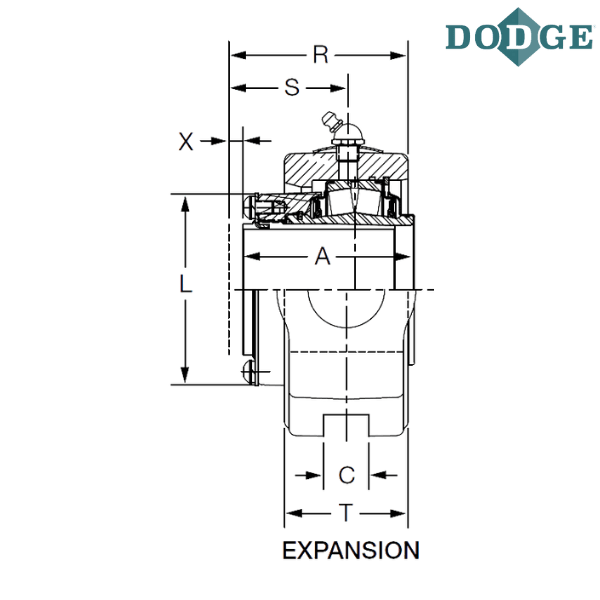

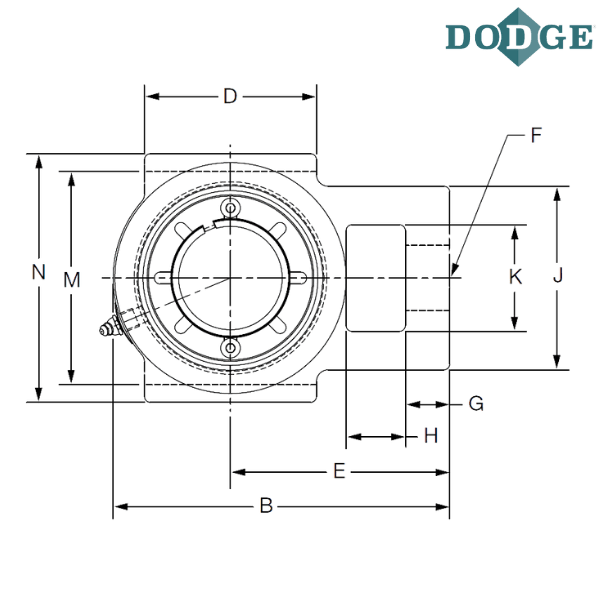

Length Through Bore (A) inch - 2.86
Overall Length (B) inch - 6.19
C (inch) - 0.69
D (inch) - 3.63
E (inch) - 3.94
F (inch) - 1.125
G (inch) - 0.94
H (inch) - 0.75
J (inch) - 3.31
K (inch) - 1.94
L (inch) - 3.28
M (inch) - 4
N (inch) - 4.75
R (inch) - 2.94
S (inch) - 2
T (inch) - 2
Total Expansion (X) inch - 0.25
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
WSTU - Wide Slot Take-up Bearing for use in Center Pull Frame
IP - IMPERIAL
R - TRIDENT Triple Lip Rubbing Seal
E - Expansion Type Bearing

** Images are for representation purposes only
