069358 DODGE - WSTU-IP-212R

Brand - DODGE
Item Number - 069358 DODGE - WSTU-IP-212R
Category - IMPERIAL - IP Wide Slot Take-Up (Trident Seal - Non-Expansion)
Type - Push-Pull Adapter
Bearing - 22215
Shaft Size (inch) - 2.75
Take-Up Frame - CP-515
Part Name - WSTU-IP-212R

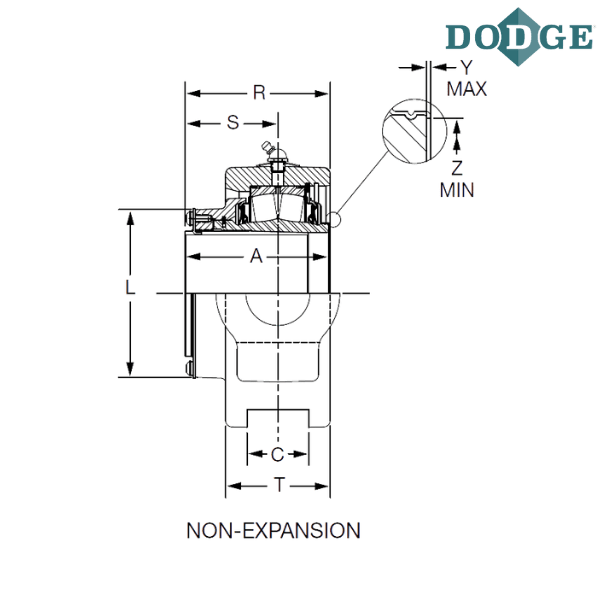

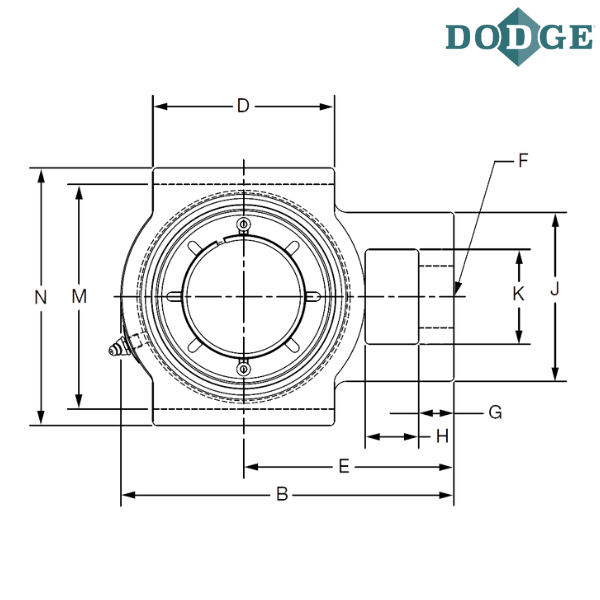

Length Through Bore (A) inch - 3.5
Overall Length (B) inch - 8.88
C (inch) - 1.81
D (inch) - 4.5
E (inch) - 5.75
F (inch) - 1.625
G (inch) - 1.13
H (inch) - 1.5
J (inch) - 4.88
K (inch) - 2.75
L (inch) - 4.28
M (inch) - 5.94
N (inch) - 6.69
R (inch) - 3.67
S (inch) - 2.28
T (inch) - 2.69
Y (inch) - 0.03
Z (inch) - 3.47
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
WSTU - Wide Slot Take-up Bearing for use in Center Pull Frame
IP - IMPERIAL
R - TRIDENT Triple Lip Rubbing Seal

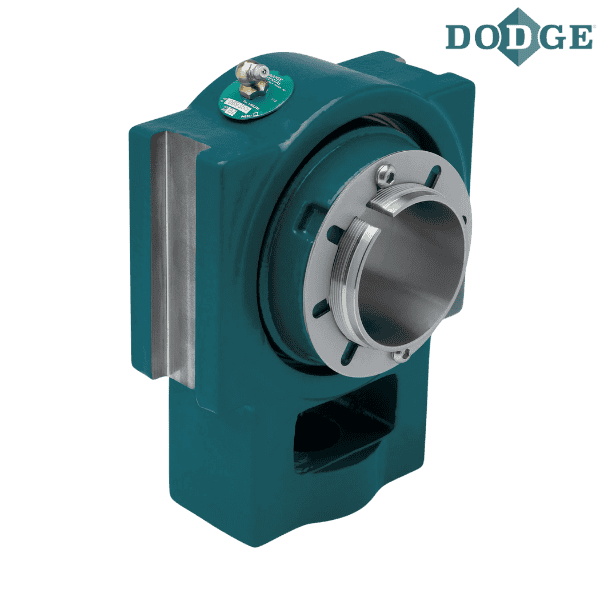

** Images are for representation purposes only
