069354 DODGE - WSTU-IP-206R

Brand - DODGE
Item Number - 069354 DODGE - WSTU-IP-206R
Category - IMPERIAL - IP Wide Slot Take-Up (Trident Seal - Non-Expansion)
Type - Push-Pull Adapter
Bearing - 22213
Shaft Size (inch) - 2.375
Take-Up Frame - CP-502
Part Name - WSTU-IP-206R

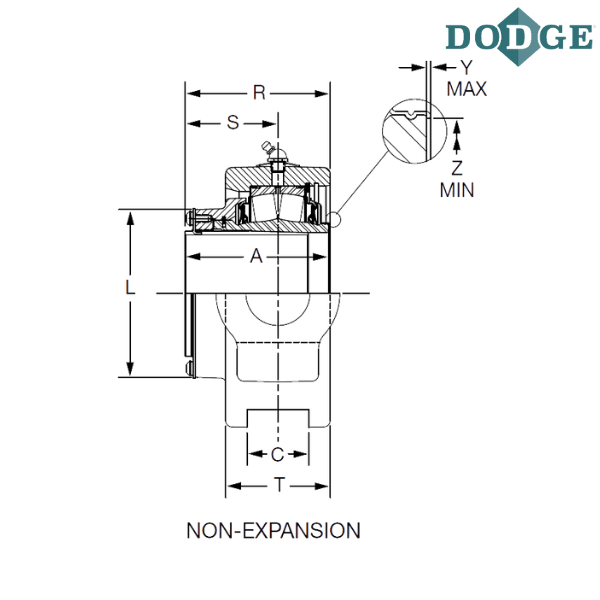

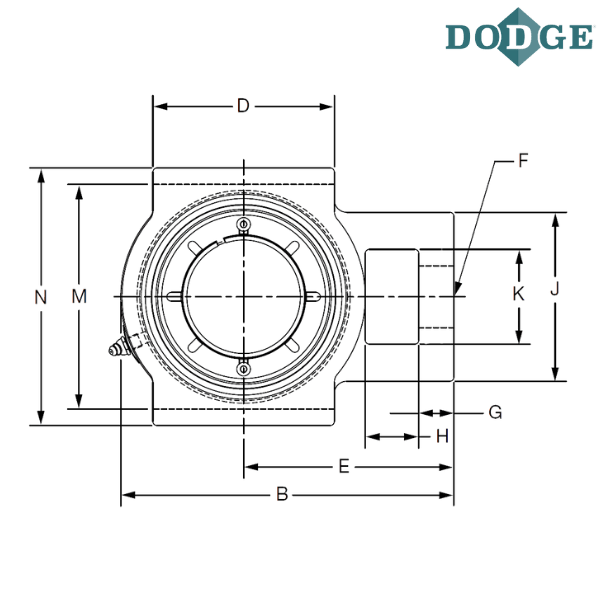

Length Through Bore (A) inch - 3.42
Overall Length (B) inch - 7.69
C (inch) - 1.06
D (inch) - 4.38
E (inch) - 5
F (inch) - 1.375
G (inch) - 1.06
H (inch) - 1.25
J (inch) - 4.25
K (inch) - 2.5
L (inch) - 3.88
M (inch) - 5.13
N (inch) - 5.88
R (inch) - 3.44
S (inch) - 2.22
T (inch) - 2.44
Y (inch) - 0.03
Z (inch) - 2.95
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
WSTU - Wide Slot Take-up Bearing for use in Center Pull Frame
IP - IMPERIAL
R - TRIDENT Triple Lip Rubbing Seal

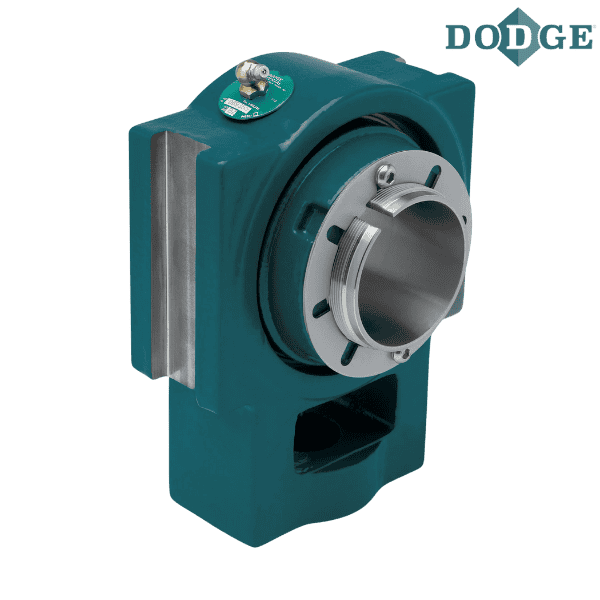

** Images are for representation purposes only
