069348 DODGE - WSTU-IP-112R

Brand - DODGE
Item Number - 069348 DODGE - WSTU-IP-112R
Category - IMPERIAL - IP Wide Slot Take-Up (Trident Seal - Non-Expansion)
Type - Push-Pull Adapter
Bearing - 22209
Shaft Size (inch) - 1.75
Take-Up Frame - CP-400
Part Name - WSTU-IP-112R

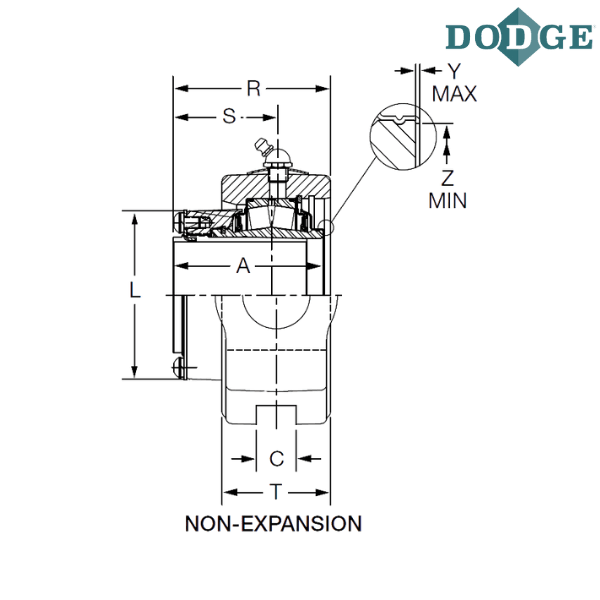

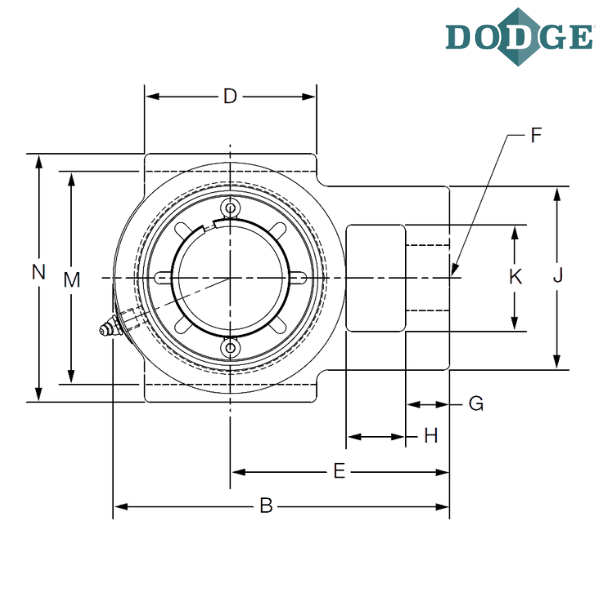

Length Through Bore (A) inch - 2.81
Overall Length (B) inch - 5.94
C (inch) - 0.69
D (inch) - 3.13
E (inch) - 3.81
F (inch) - 1.125
G (inch) - 0.94
H (inch) - 0.75
J (inch) - 3.31
K (inch) - 1.94
L (inch) - 3
M (inch) - 4
N (inch) - 4.75
R (inch) - 2.97
S (inch) - 1.98
T (inch) - 2.03
Y (inch) - 0.02
Z (inch) - 2.08
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
WSTU - Wide Slot Take-up Bearing for use in Center Pull Frame
IP - IMPERIAL
R - TRIDENT Triple Lip Rubbing Seal

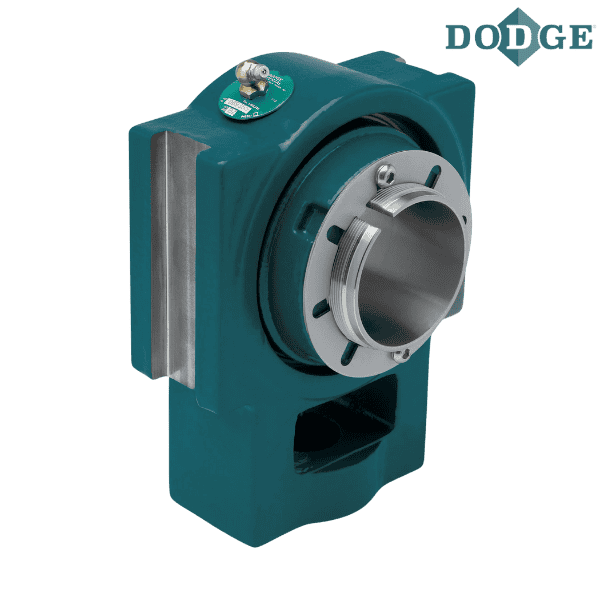

** Images are for representation purposes only
