Description
Brand - DODGE
Item Number - 069067 DODGE - B1U-C-315
Category - Type C Units - Inch (B-1 Units)
Shaft Size (inch) - 3.9375
Part Name - B1U-C-315
Approximate Weight (lbs) - 115

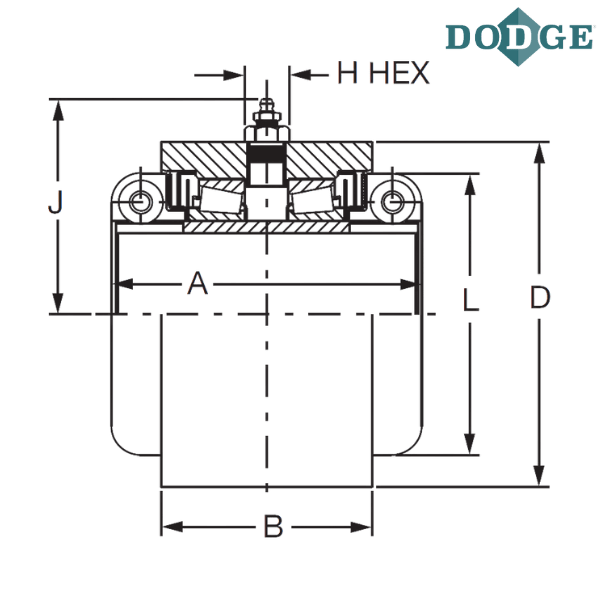

Length Through Bore (A) inch - 9.5
B (inch) - 6.25
D** (inch) - 9.25
Hex (H) inch - 0.75
J (inch) - 6
L (inch) - 7.38
Maximum Speed - Available on Request
Notes :
B1U - B-1 Unit, Cast Iron
C - Type C
B1 Unit - Used in Customer Manufactured Housings
** + .000 - .002

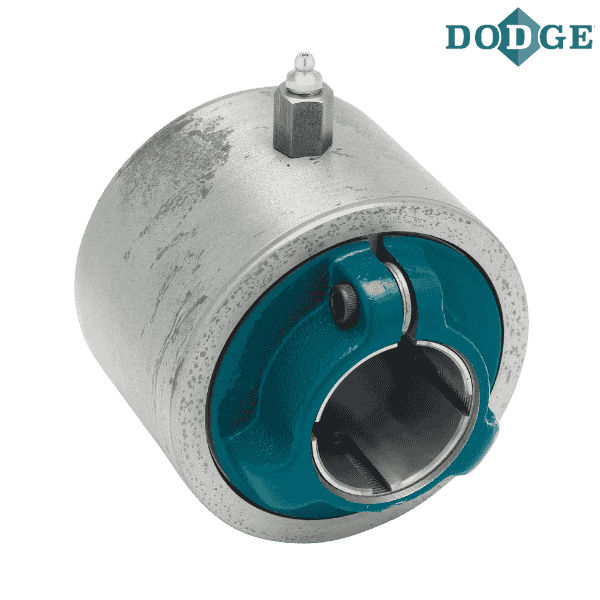

*** Images are for representation purposes only
