Description
Brand - DODGE
Item Number - 069061 DODGE - B1U-C-111
Category - Type C Units - Inch (B-1 Units)
Shaft Size (inch) - 1.6875
Part Name - B1U-C-111
Approximate Weight (lbs) - 11

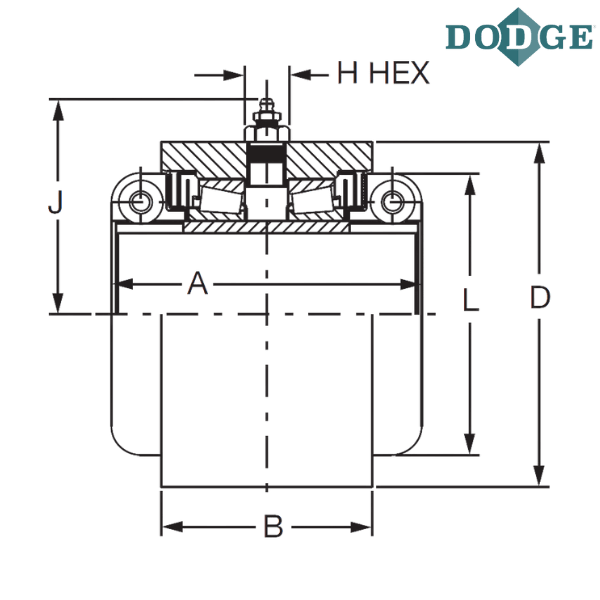

Length Through Bore (A) inch - 4.88
B (inch) - 3.13
D** (inch) - 4.25
Hex (H) inch - 0.625
J (inch) - 3.31
L (inch) - 3.5
Maximum Speed - Available on Request
Notes :
B1U - B-1 Unit, Cast Iron
C - Type C
B1 Unit - Used in Customer Manufactured Housings
** + .000 - .002

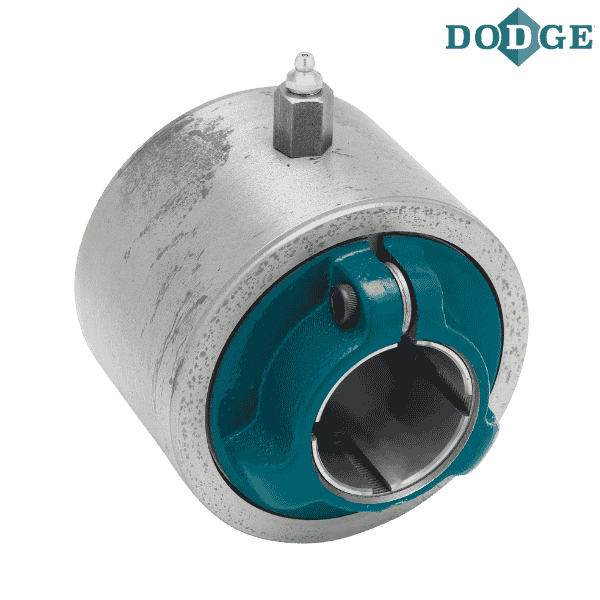

*** Images are for representation purposes only
