Description
Brand - DODGE

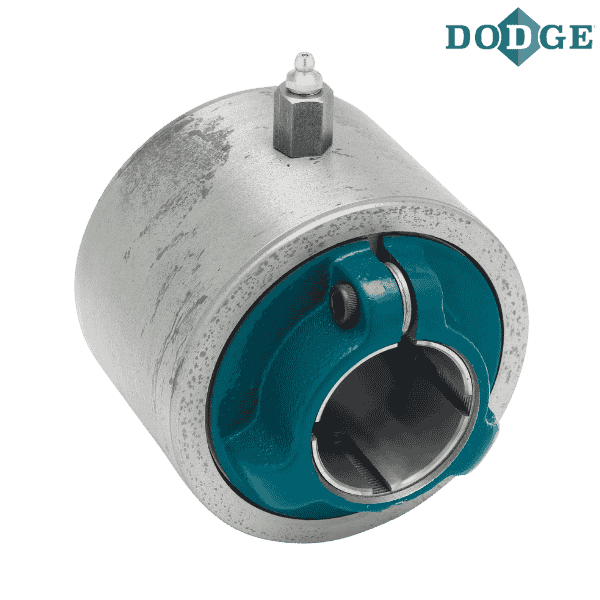

Item Number - 069034 DODGE - B1U-C-200
Category - Type C Units - Inch (B-1 Units)
Shaft Size (inch) - 2
Part Name - B1U-C-200
Approximate Weight (lbs) - 18

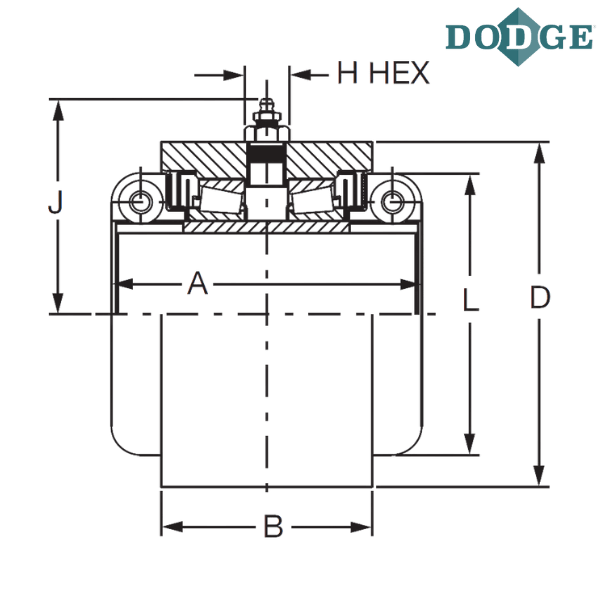

Length Through Bore (A) inch - 5.75
B (inch) - 3.75
D** (inch) - 5.25
Hex (H) inch - 0.625
J (inch) - 3.81
L (inch) - 4.38
Maximum Speed - Available on Request
Notes :
B1U - B-1 Unit, Cast Iron
C - Type C
B1 Unit - Used in Customer Manufactured Housings
** + .000 - .002
*** Images are for representation purposes only
