068872 DODGE - P2B-GTH-30M-E

Brand - DODGE
Item Number - 068872 DODGE - P2B-GTH-30M-E
Category - GRIP TIGHT Adapter Ball Bearings (GTH-E Expansion Pillow Blocks)
Series - 206
Shaft Size (mm) - 30
Description - P2B-GTH-30M-E
Part Number (Unit without Adapter Sleeve and Lock Nut) - 130697
Description (Unit without Adapter Sleeve and Lock Nut) - P2B-GTH-06-E
Part Number (Adapter Sleeve and Lock Nut Assembly) - 136555
Description (Adapter Sleeve and Lock Nut Assembly) - AN-GT-06-30M-D
Weight (kg) - 1.5

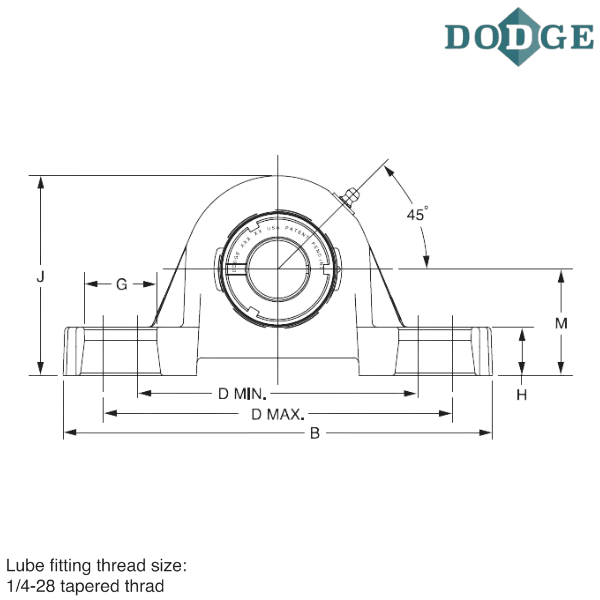

Length Through Bore (A) mm - 40.9
Overall Length (B) mm - 165.1
Width (C) mm - 44.5
Bolt to Bolt Minimum Distance (D min) mm - 118.9
Bolt to Bolt Maximum Distance (D max) mm - 138.2
F-Bolt Diameter - M12
G (mm) - 23.9
H (mm) - 18
Overall Height (J) mm - 95.3
L (mm) - 52.8
Base to Center Height (M) mm - 47.8
R (mm) - 13.2
S (mm) - 27.7
Total Expansion (T) mm - 4.1
U (mm) - 73.9
V (mm) - 147.8
W (mm) - 14.2
X (mm) - 3
Z (mm) - 28.7
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
P2B - 2-bolt base pillow block
GT - Wide inner ring, normal duty, thin wall adapter locking
M - Metric
E - Expansion

** Images are for representation purposes only
