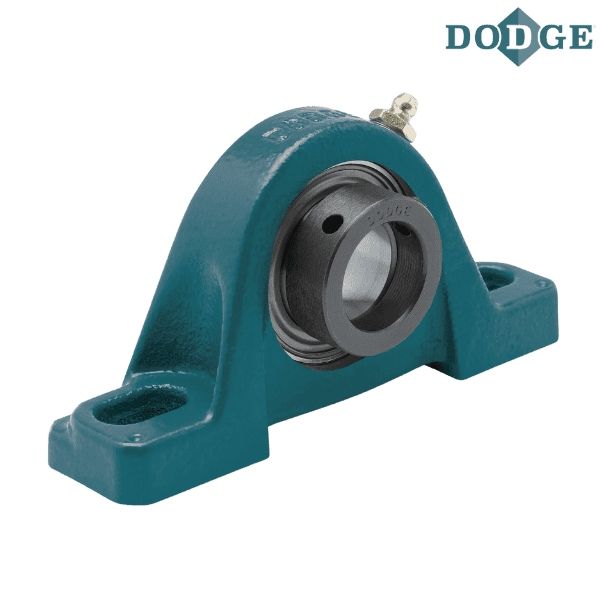

068864 DODGE - P2B-SXVB-35M

Brand - DODGE
Item Number - 068864 DODGE - P2B-SXVB-35M
Category - Eccentric SXV Collar Ball Bearings (SXVB Intermediate Duty Pillow Blocks)
Series - 207
Shaft Size (mm) - 35
Description - P2B-SXVB-35M
Weight (kg) - 1.9

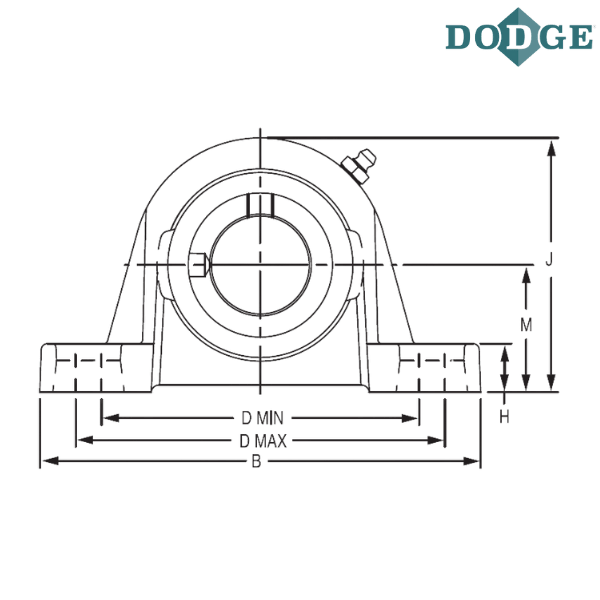

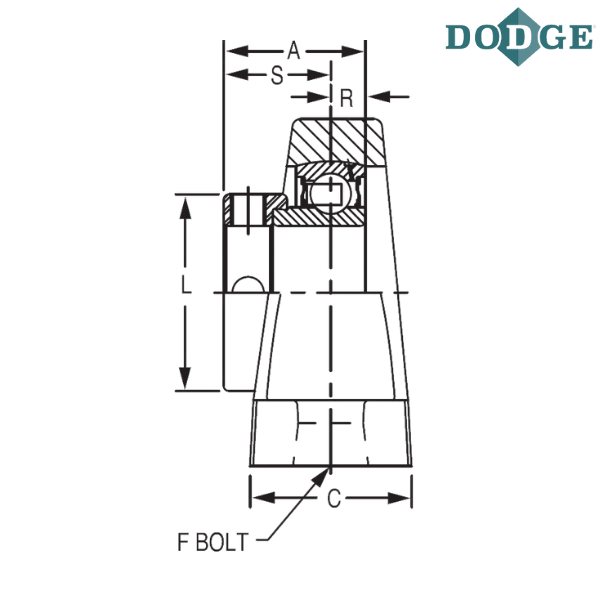

Length Through Bore (A) mm - 38.9
Overall Length (B) mm - 165.1
Width (C) mm - 44.5
Bolt to Bolt Minimum Distance (D min) mm - 118.9
Bolt to Bolt Maximum Distance (D max) mm - 138.2
F-Bolt Diameter - M12
G (mm) - 23.9
H (mm) - 16.5
Overall Height (J) mm - 93.7
L (mm) - 54.1
Base to Center Height (M) mm - 46
R (mm) - 9.4
S (mm) - 29.5

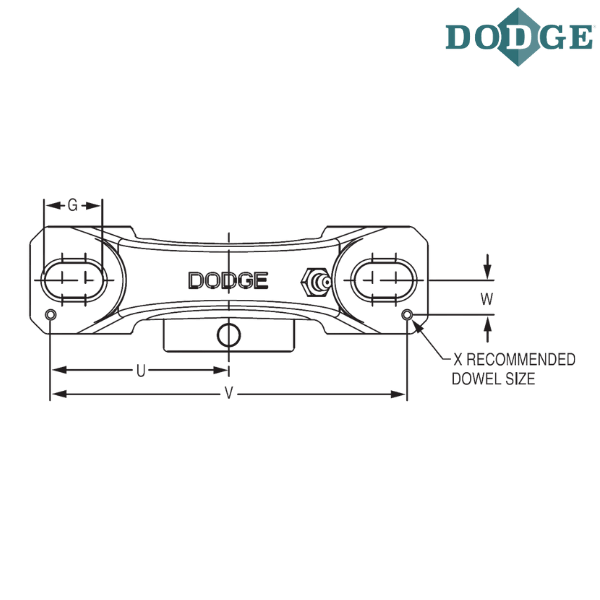

U (mm) - 73.9
V (mm) - 147.8
W (mm) - 14.2
X (mm) - 1.9
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
P2B - 2 bolt base pillow block
SXV - Narrow inner ring, intermediate duty, eccentric locking collar
B - Low backing height pillow block
M - Metric

** Images are for representation purposes only
