Description
Brand - DODGE
Item Number - 068803 DODGE - LFT-SXV-103
Category - Eccentric Collar Ball Bearings (SXV LFT Intermediate Duty 2-Bolt Flange Bearings)
Series - 206
Shaft Size (inch) - 1.1875

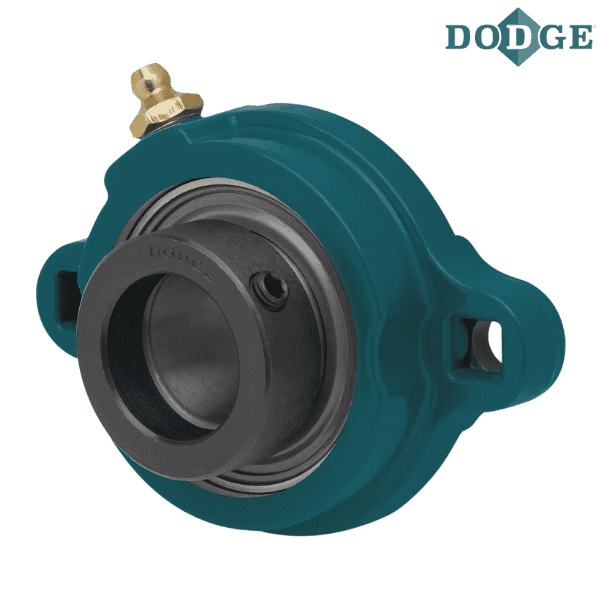

Description - LFT-SXV-103
Part Number (No-Lube/Sealed for Life) - 053007
Description (No-Lube/Sealed for Life) - LFT-SXV-103-NL
Weight (lbs) - 1.47

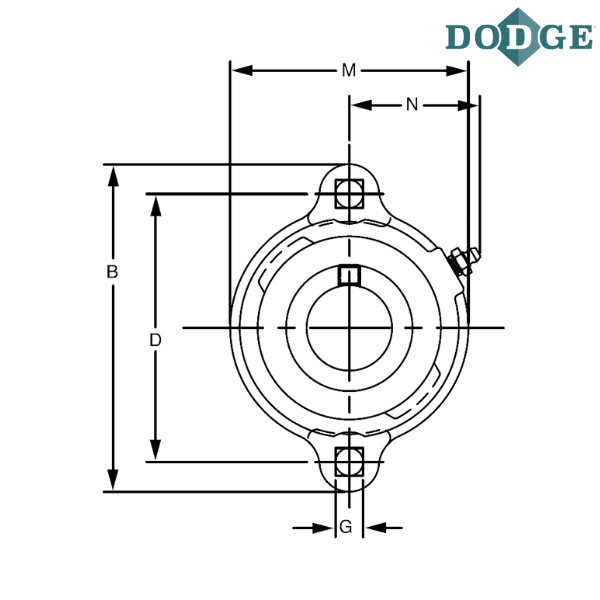

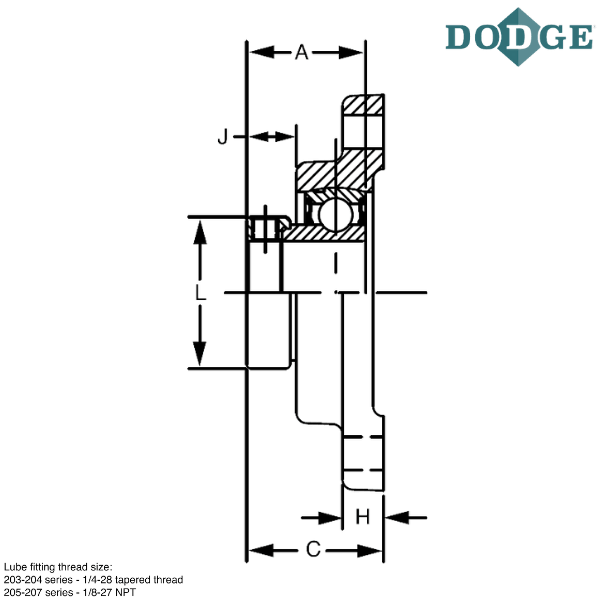

Length Through Bore (A) inch - 1.41
Overall Length (B) inch - 4.44
Thickness (C) inch - 1.6
Bolt Center to Center Length (D) inch - 3.56
G (inch) - 0.41
H (inch) - 0.47
J (inch) - 0.61
L (inch) - 1.75
M (inch) - 3.25
N (inch) - 1.72
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request
Notes :
LFT - 2 bolt light duty flange
SXV - Narrow inner ring, intermediate duty, eccentric locking collar
** Images are for representation purposes only
