068061 DODGE - P2B-DLH-50M-E

Brand - DODGE
Item Number - 068061 DODGE - P2B-DLH-50M-E
Category - D-LOK® Ball Bearings (DLH-E Expansion and DLH Non-Expansion Normal Duty Pillow Blocks)
Series - 210
Shaft Size (mm) - 50
Description - P2B-DLH-50M-E
Part Number (Non-Expansion) - 058997
Description (Non-Expansion) - P2B-DLM-50M
Weight (kg) - 3.3

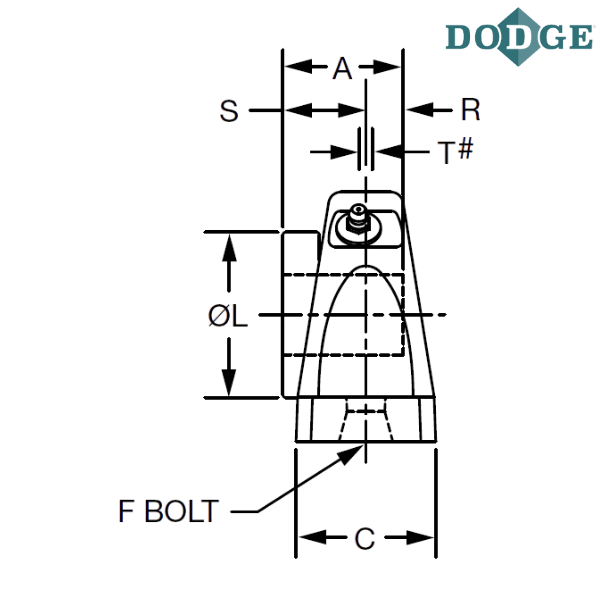

Length Through Bore (A) mm - 51.1

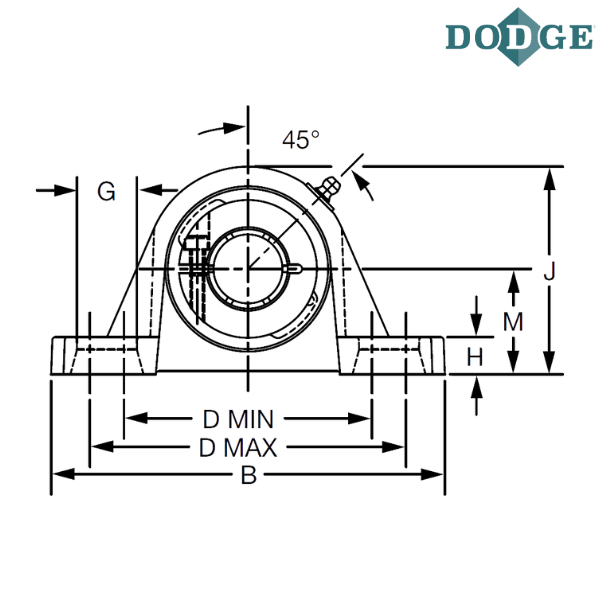

Overall Length (B) mm - 225.6
Width (C) mm - 58.4
Bolt to Bolt Minimum Distance (D min) mm - 162.1
Bolt to Bolt Maximum Distance (D max) mm - 189
F-Bolt Diameter - M16
G (mm) - 30.7
H (mm) - 22.4
Overall Height (J) mm - 126
L (mm) - 82.3
Base to Center Height (M) mm - 63.5
R (mm) - 19.1
S (mm) - 32
Total Expansion (T) mm - 5.6

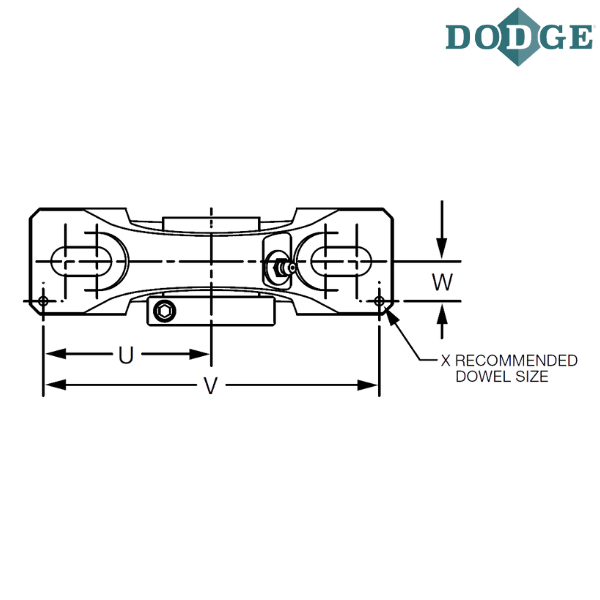

U (mm) - 100.1
V (mm) - 200.2
W (mm) - 20.6
X (mm) - 3
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
P2B - Pillow block, 2-bolt base
DL - Wide inner ring, normal duty, concentric clamp collar
H - High backing height
M - Metric
E - Expansion

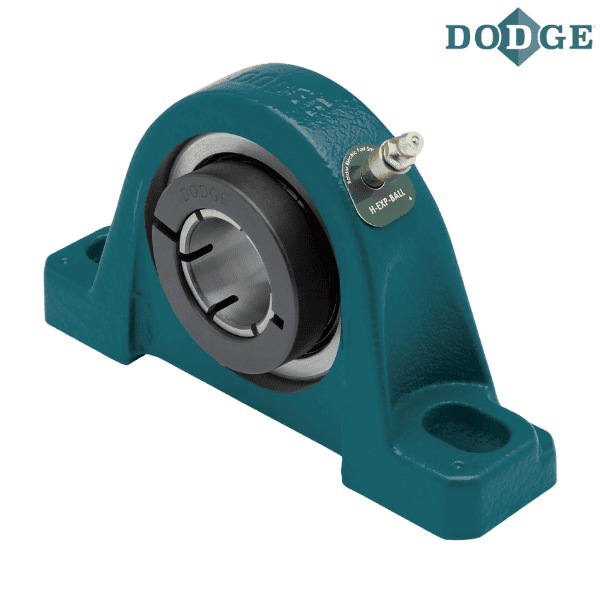

** Images are for representation purposes only
