067726 DODGE - NSTU-DLM-100

Brand - DODGE
Item Number - 067726 DODGE - NSTU-DLM-100
Category - D-LOK® Ball Bearings (DLM Medium Duty Narrow Slot Take-Up Bearings)
Series - 206
Shaft Size (inch) - 1
Description - NSTU-DLM-100
Weight (lbs) - 2.6

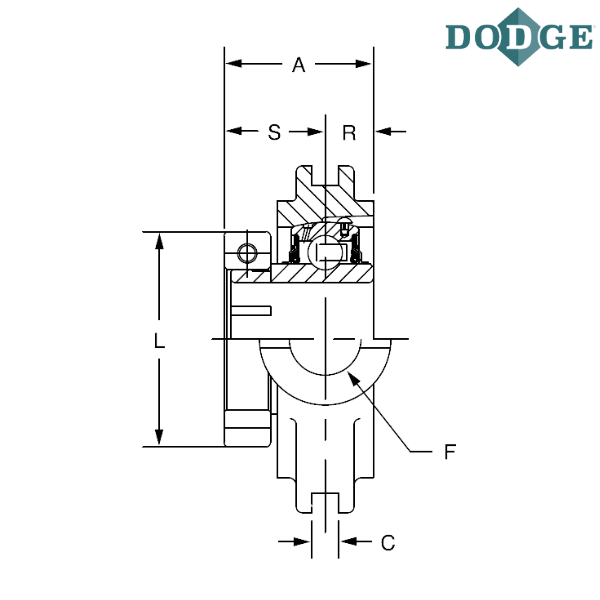

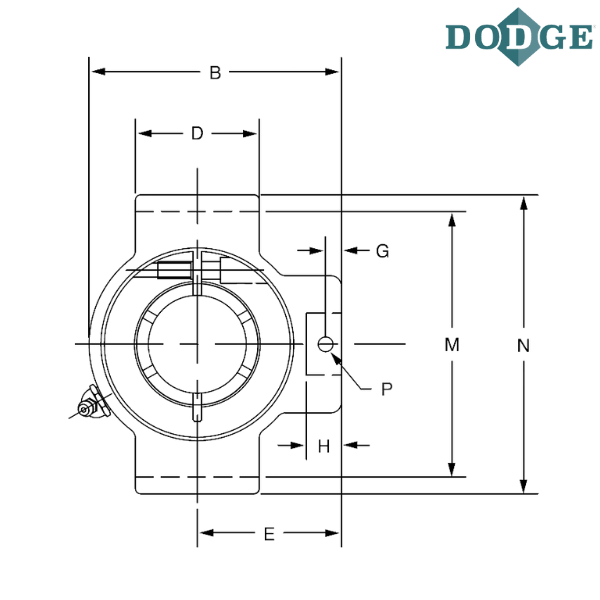

Take-Up Frame Size - NS308
Length Through Bore (A) inch - 1.56
Length Through Bore (A) mm - 39.6
Overall Length (B) inch - 4.31
Overall Length (B) mm - 109.5
C (inch) - 0.25
C (mm) - 6.35
D (inch) - 2.5
D (mm) - 63.5
E (inch) - 2.69
E (mm) - 68.3
F (Screw Diameter) inch - 0.75
F (Screw Diameter) mm - 19.1
G (inch) - 0.5
G (mm) - 12.7
H (inch) - 0.94
H (mm) - 23.9
J (inch) - 1.38
J (mm) - 35.1
L (inch) - 2.22
L (mm) - 56.4
M (inch) - 3.510/3.480
M (mm) - 89.15/88.39
Overall Width (N) inch - 4.13
Overall Width (N) mm - 104.9
Pin Diameter (P) inch - 0.32
Pin Diameter (P) mm - 8.1
R (inch) - 0.58
R (mm) - 14.7
S (inch) - 0.98
S (mm) - 24.9
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
NSTU - Narrow slot take-up
DLM - Wide inner ring, medium duty, concentric clamp collar

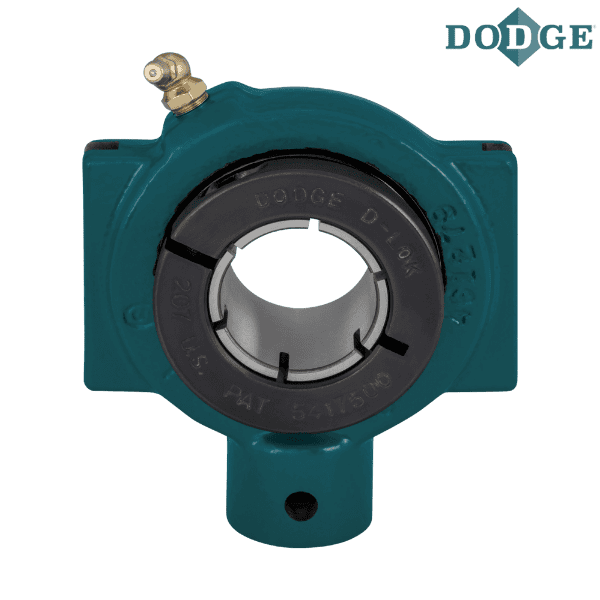

** Images are for representation purposes only
