Description
Brand - DODGE
Item Number - 067159 DODGE - S1U569-HC-207
Category - Special Duty Hinged Cap Pillow Block S-1 Units - Inch
Shaft Size (inch) - 2.4375
Part Name - S1U569-HC-207
Approximate Weight (lbs) - 19

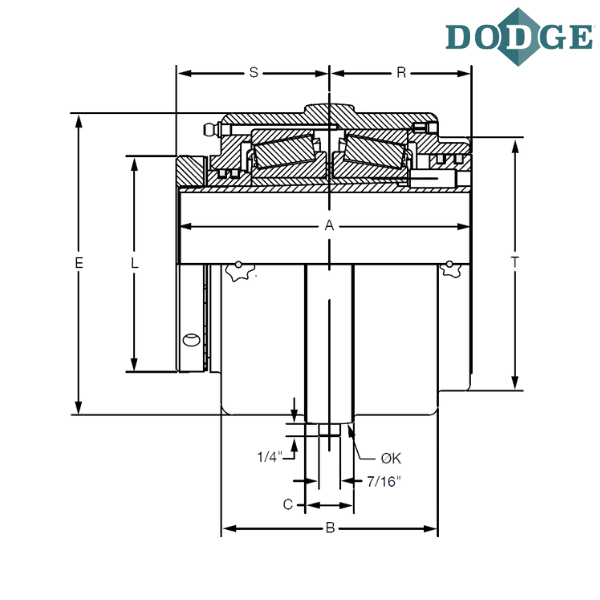

Length Through Bore (A) inch - 5.31
B (inch) - 4
C (inch) - 1
E (inch) - 5.31
K (inch) - 5.69
L (inch) - 3.81
R (inch) - 2.56
S (inch) - 2.75
T (inch) - 4.63
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request
Notes :
S1U - S-1 Unit, Cast Iron
HC - Hinged Cap

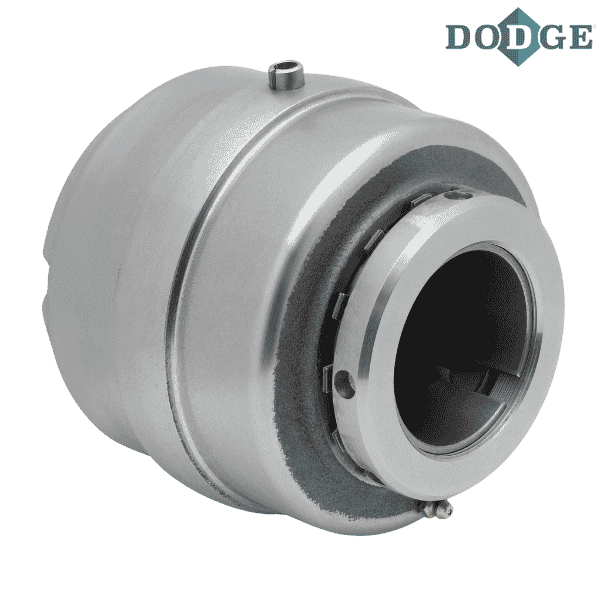

** Images are for representation purposes only
