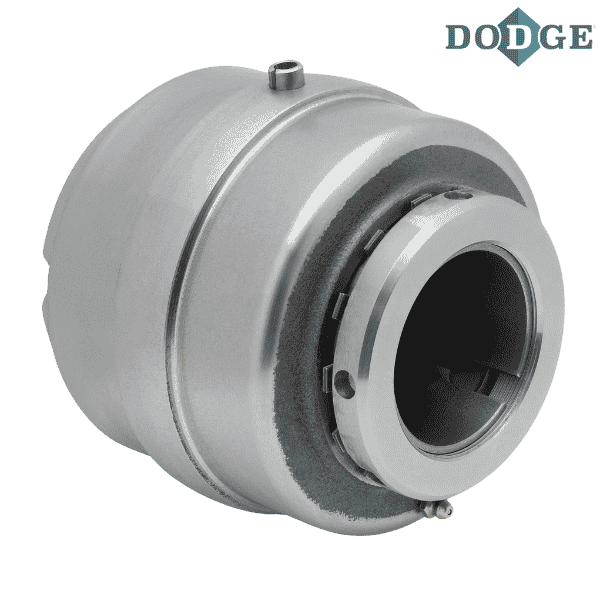

067152 DODGE - S1U406-HC-108


Country Of Origin: USA
Price:
Sale price₹ 100.00 Regular price₹ 200.00

Download data sheet

Description

Brand - DODGE
Item Number - 067152 DODGE - S1U406-HC-108
Category - Special Duty Hinged Cap Pillow Block S-1 Units - Inch
Shaft Size (inch) - 1.5
Part Name - S1U406-HC-108
Approximate Weight (lbs) - 8

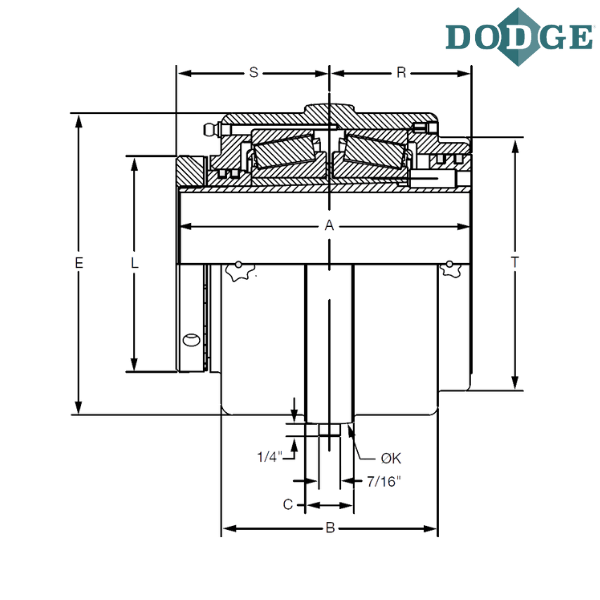

Length Through Bore (A) inch - 4.13
B (inch) - 2.69
C (inch) - 0.75
E (inch) - 3.75
K (inch) - 4.06
L (inch) - 2.44
R (inch) - 1.94
S (inch) - 2.19
T (inch) - 3.25
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
S1U - S-1 Unit, Cast Iron
HC - Hinged Cap

** Images are for representation purposes only
