067072 DODGE - P2B-HC-215


Country Of Origin: USA
Price:
Sale price₹ 100.00 Regular price₹ 200.00

Download data sheet

Description

Brand - DODGE
Item Number - 067072 DODGE - P2B-HC-215
Category - Special Duty Hinged Cap Pillow Block - Inch (Pillow Block Assembly - Non-Expansion)
Shaft Size (inch) - 2.9375
Part Name - P2B-HC-215
Approximate Weight (lbs) - 60
Compatiable Part Number of Pillow Block Housing Only (Non-Expansion) - 067078
Compatiable Part Name of Pillow Block Housing Only (Non-Expansion) - HS2-HC-656
Approximate Weight of Pillow Block Housing Only (lbs) - 52

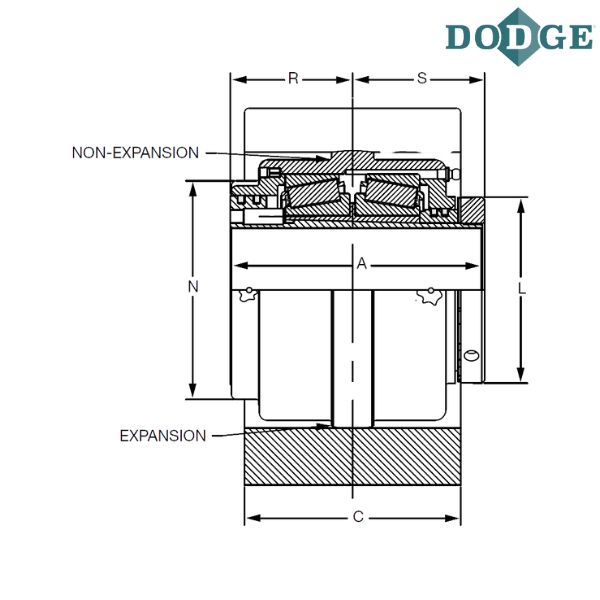

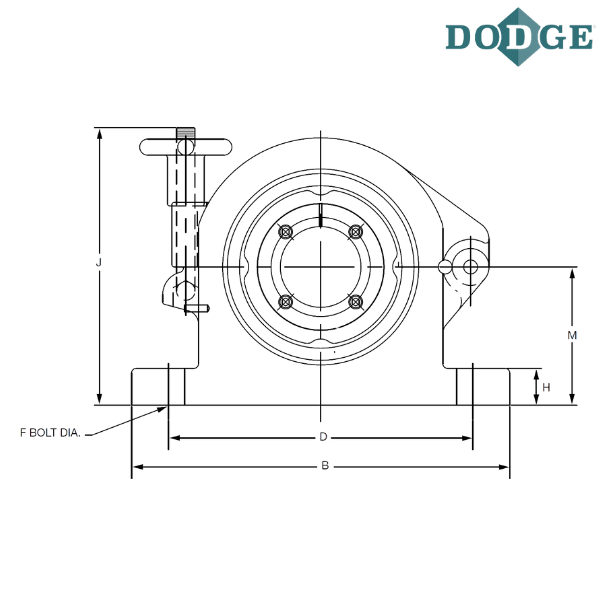

Length Through Bore (A) inch - 6.06
Overall Length (B) inch - 11.13
Width (C) inch - 4.75
Bolt Center to Center Length (D) inch - 9.13
F-Bolt Diameter (inch) - 0.75
H (inch) - 1.25
Overall Height (J) inch - 10.13
L (inch) - 4.44
Base to Center Height (M) inch - 5.00
N (inch) - 5.25
R (inch) - 2.94
S (inch) - 3.13
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
P2B - Pillow Block 2-Bolt, Cast Iron
HC - Hinged Cap

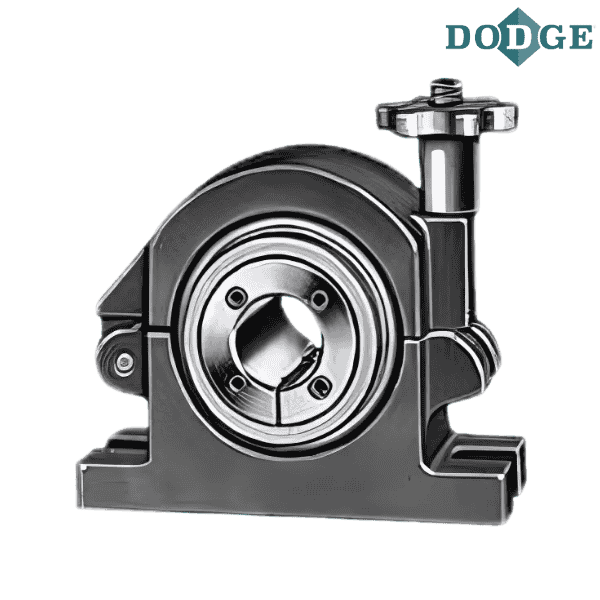

** Images are for representation purposes only
