Description
Brand - DODGE
Item Number - 067052 DODGE - P2B-HC-115

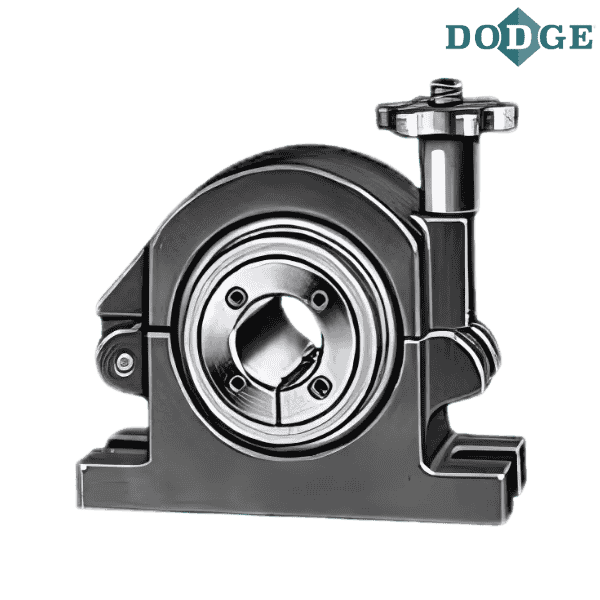

Category - Special Duty Hinged Cap Pillow Block - Inch (Pillow Block Assembly - Non-Expansion)
Shaft Size (inch) - 1.9375
Part Name - P2B-HC-115
Approximate Weight (lbs) - 36
Compatiable Part Number of Pillow Block Housing Only (Non-Expansion) - 067031
Compatiable Part Name of Pillow Block Housing Only (Non-Expansion) - HS2-HC-481
Approximate Weight of Pillow Block Housing Only (lbs) - 23

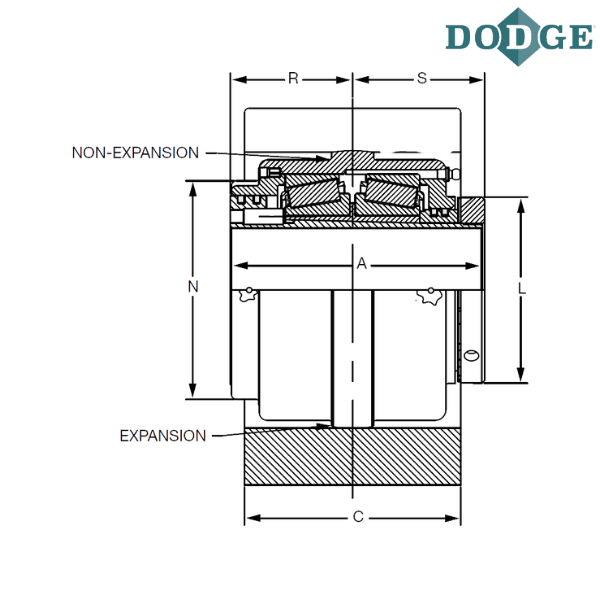

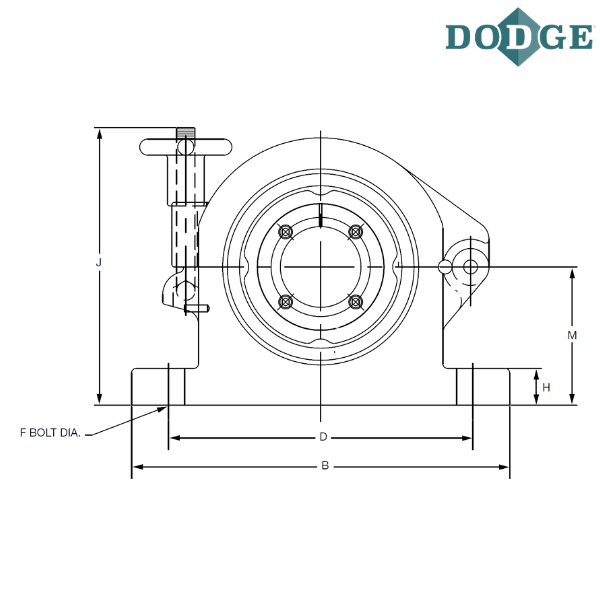

Length Through Bore (A) inch - 4.44
Overall Length (B) inch - 9.25
Width (C) inch - 3.50
Bolt Center to Center Length (D) inch - 7.69
F-Bolt Diameter (inch) - 0.625
H (inch) - .88
Overall Height (J) inch - 7.63
L (inch) - 3.06
Base to Center Height (M) inch - 3.25
N (inch) - 3.81
R (inch) - 2.13
S (inch) - 2.31
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request
Notes :
P2B - Pillow Block 2-Bolt, Cast Iron
HC - Hinged Cap
** Images are for representation purposes only
