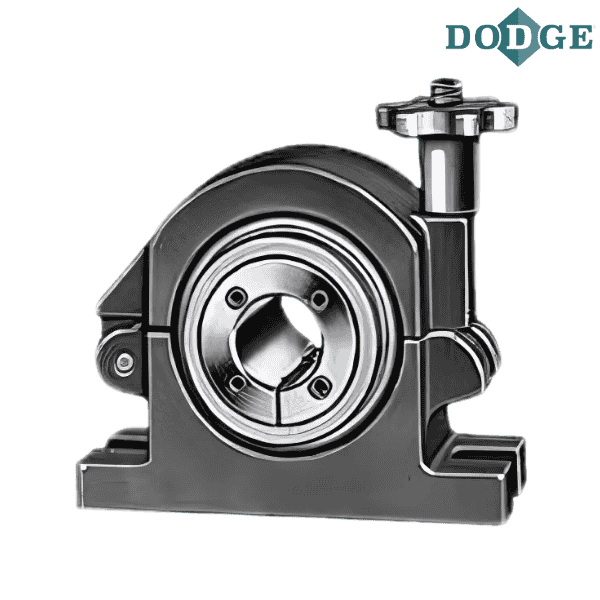

067049 DODGE - P2B-HC-111E


Country Of Origin: USA
Price:
Sale price₹ 100.00 Regular price₹ 200.00

Download data sheet

Description

Brand - DODGE
Item Number - 067049 DODGE - P2B-HC-111E
Category - Special Duty Hinged Cap Pillow Block - Inch (Pillow Block Assembly - Expansion)
Shaft Size (inch) - 1.6875
Part Name - P2B-HC-111E
Approximate Weight (lbs) - 27
Compatiable Part Number of Pillow Block Housing Only (Expansion) - 067103
Compatiable Part Name of Pillow Block Housing Only (Expansion) - HS2-HC-444E
Approximate Weight of Pillow Block Housing Only (lbs) - 16

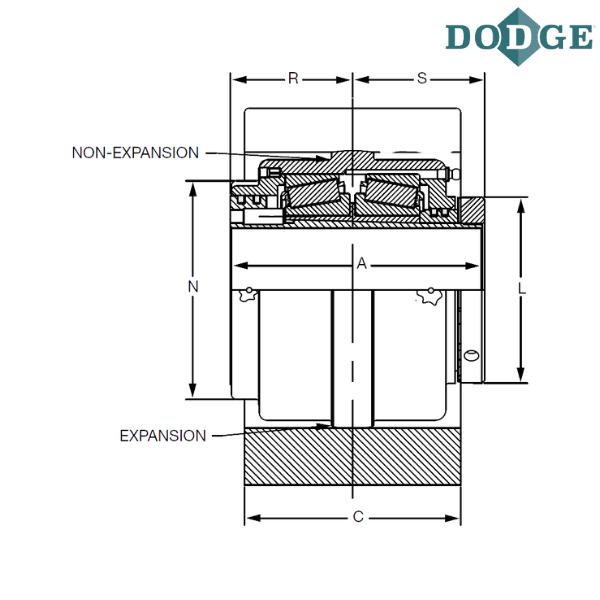

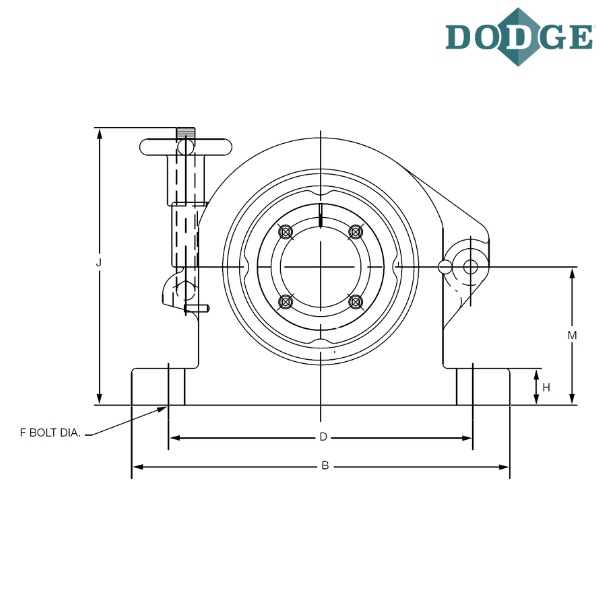

Length Through Bore (A) inch - 4.25
Overall Length (B) inch - 8.25
Width (C) inch - 3.25
Bolt Center to Center Length (D) inch - 6.88
F-Bolt Diameter (inch) - 0.5
H (inch) - .75
Overall Height (J) inch - 6.88
L (inch) - 2.81
Base to Center Height (M) inch - 3.13
N (inch) - 3.53
R (inch) - 2.00
S (inch) - 2.25
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
P2B - Pillow Block 2-Bolt, Cast Iron
HC - Hinged Cap
E - Expansion Type Bearing

** Images are for representation purposes only
