Description
Brand - DODGE
Item Number - 067045 DODGE - P2B-HC-207E
Category - Special Duty Hinged Cap Pillow Block - Inch (Pillow Block Assembly - Expansion)
Shaft Size (inch) - 2.4375
Part Name - P2B-HC-207E
Approximate Weight (lbs) - 60
Compatiable Part Number of Pillow Block Housing Only (Expansion) - 067138
Compatiable Part Name of Pillow Block Housing Only (Expansion) - HS2-HC-569E
Approximate Weight of Pillow Block Housing Only (lbs) - 40

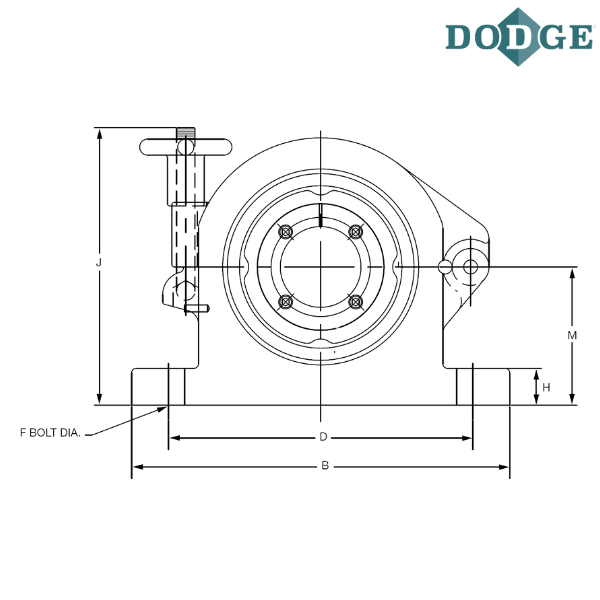

Length Through Bore (A) inch - 5.53
Overall Length (B) inch - 10.25
Width (C) inch - 4.25
Bolt Center to Center Length (D) inch - 8.25
F-Bolt Diameter (inch) - 0.75
H (inch) - 1.00
Overall Height (J) inch - 9.63
L (inch) - 3.81
Base to Center Height (M) inch - 4.50
N (inch) - 4.63
R (inch) - 2.56
S (inch) - 2.75
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request
Notes :
P2B - Pillow Block 2-Bolt, Cast Iron
HC - Hinged Cap
E - Expansion Type Bearing

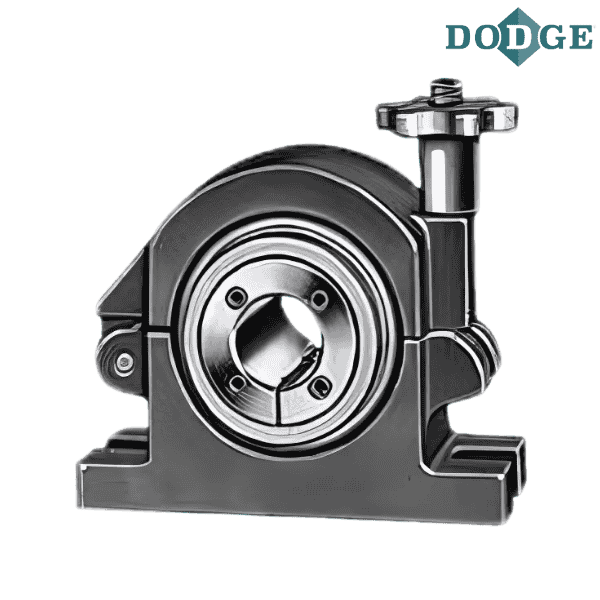

** Images are for representation purposes only
