066600 DODGE - B1U-SD-715


Country Of Origin: USA
Price:
Sale price₹ 100.00 Regular price₹ 200.00

Download data sheet

Description

Brand - DODGE
Item Number - 066600 DODGE - B1U-SD-715
Category - Special Duty B-1 Units (Customer Supplied Housing)
Shaft Size (inch) - 7.9375
Part Name - B1U-SD-715
Approximate Weight (lbs) - 800
Length Through Bore (A) inch - 14.5
Overall Width (B) inch - 9.94
D (inch) - 16.250 (+.000 -.002”)
F (inch) - 10.06
Hex (H) inch - 1
J (inch) - 9.63
L (inch) - 12.5
R (inch) - 7.25
S (inch) - 7.25

Notes :
B1U - B-1 Unit, Cast Iron
SD - Special Duty

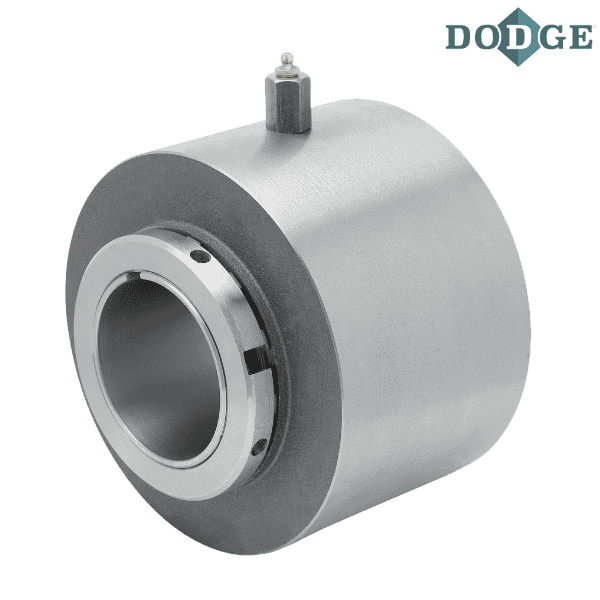

** Images are for representation purposes only
