066589 DODGE - B1U-SD-415


Country Of Origin: USA
Price:
Sale price₹ 100.00 Regular price₹ 200.00

Download data sheet

Description

Brand - DODGE
Item Number - 066589 DODGE - B1U-SD-415
Category - Special Duty B-1 Units (Customer Supplied Housing)
Shaft Size (inch) - 4.9375
Part Name - B1U-SD-415
Approximate Weight (lbs) - 175

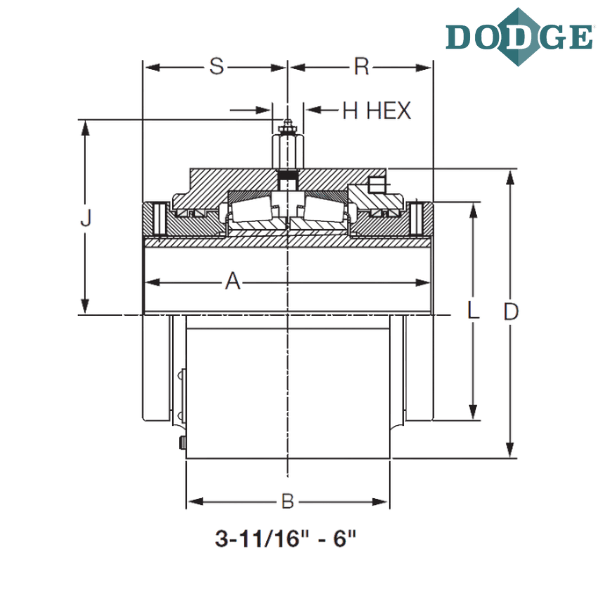

Length Through Bore (A) inch - 10.5
Overall Width (B) inch - 7.38
D (inch) - 11.750 (+.000 -.002”)
Hex (H) inch - 0.75
J (inch) - 7.38
L (inch) - 8
R (inch) - 5.25
S (inch) - 5.25

Notes :
B1U - B-1 Unit, Cast Iron
SD - Special Duty
