Description
Brand - DODGE
Item Number - 066544 DODGE - S1U-SD-1200
Category - Special Duty S-1 Units (Expansion)
Shaft Size (inch) - 12
Part Name - S1U-SD-1200
Approximate Weight (lbs) - 1890
Length Through Bore (A) inch - 18.5
Overall Width (B) inch - 12.75
F (inch) - 13.25
L (inch) - 17
R (inch) - 9.25
S (inch) - 9.25
Notes :
S1U - S-1 unit, Cast Iron
SD - Special Duty

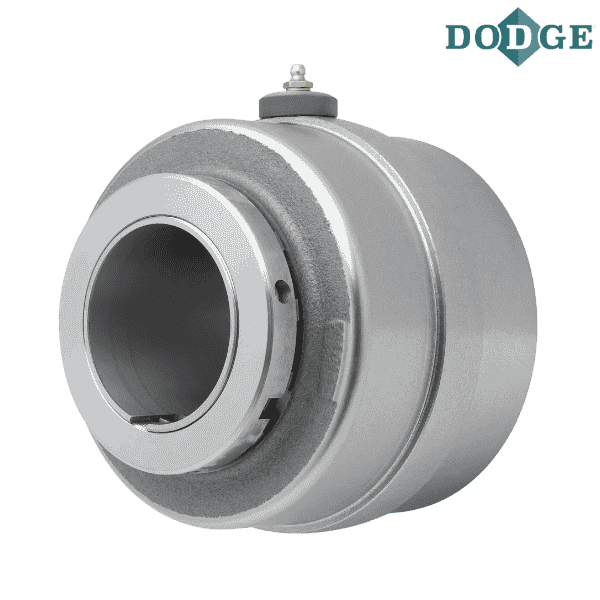

** Images are for representation purposes only
