066528 DODGE - S1U-SD-507


Country Of Origin: USA
Price:
Sale price₹ 100.00 Regular price₹ 200.00

Download data sheet

Description

Brand - DODGE
Item Number - 066528 DODGE - S1U-SD-507
Category - Special Duty S-1 Units (Expansion)
Shaft Size (inch) - 5.4375
Part Name - S1U-SD-507
Approximate Weight (lbs) - 300

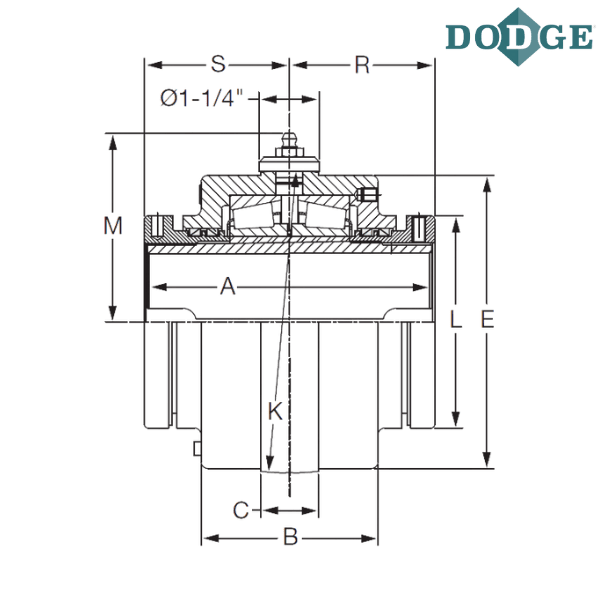

Length Through Bore (A) inch - 12
Overall Width (B) inch - 8.5
C (inch) - 2.25
E (inch) - 13
K (inch) - 14.000 (-.000 -.004”)
L (inch) - 9.5
M (inch) - 7.88
R (inch) - 6
S (inch) - 6

Notes :
S1U - S-1 unit, Cast Iron
SD - Special Duty

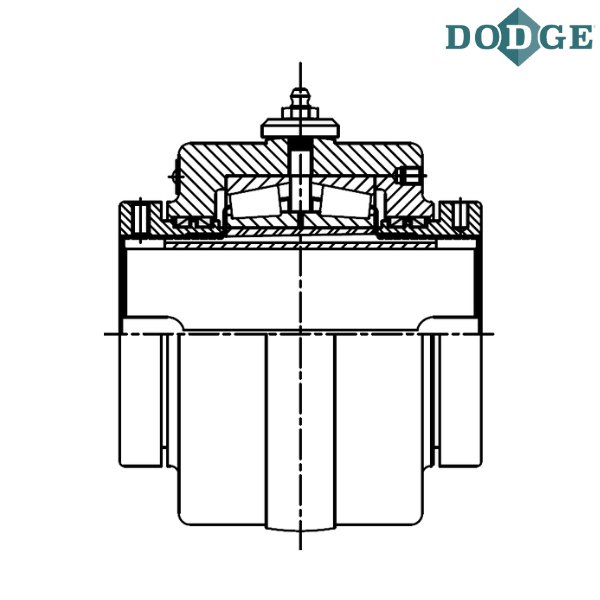

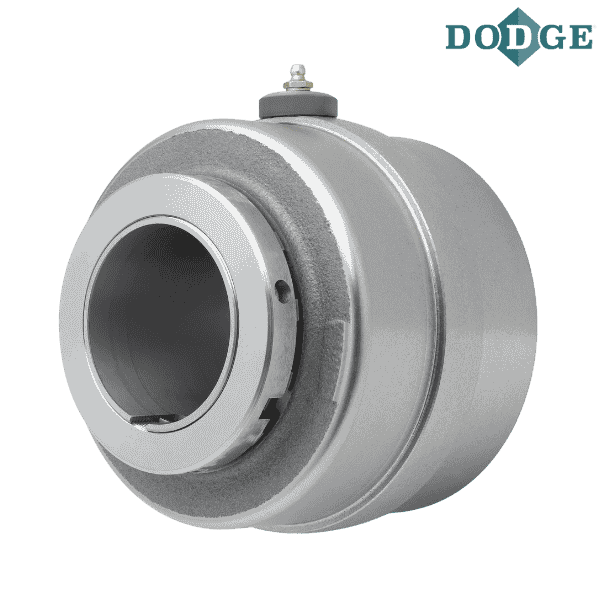

** Images are for representation purposes only
