Description
Brand - DODGE
Item Number - 066488 DODGE - DU-SD-1100
Category - Special Duty D Units (Non-Expansion)
Shaft Size (inch) - 11
Part Name - DU-SD-1100
Approximate Weight (lbs) - 1890
Length Through Bore (A) inch - 18.5
Overall Width (B) inch - 12.75
F (inch) - 13.25
Hex (G) inch - 1
L (inch) - 17
N (inch) - 17.63
O (inch) - 28.500 (+.000 -.004”)
P (inch) - 28
R (inch) - 9.25
S (inch) - 9.25
Notes :
DU - D Unit, Cast Iron
SD - Special Duty

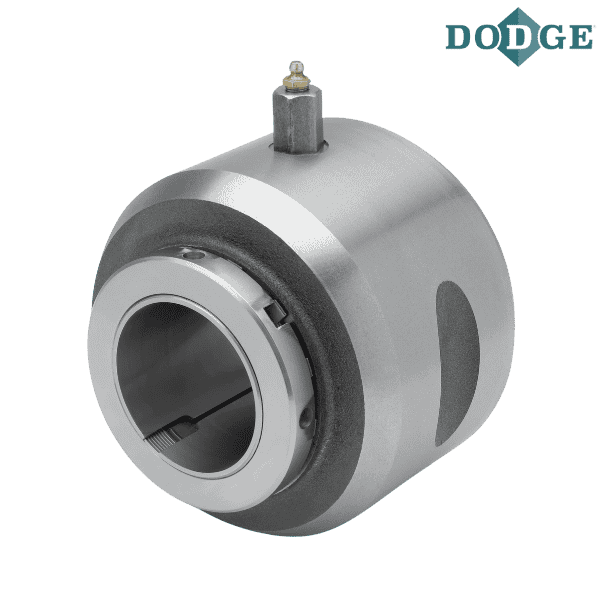

** Images are for representation purposes only
