Description
Brand - DODGE

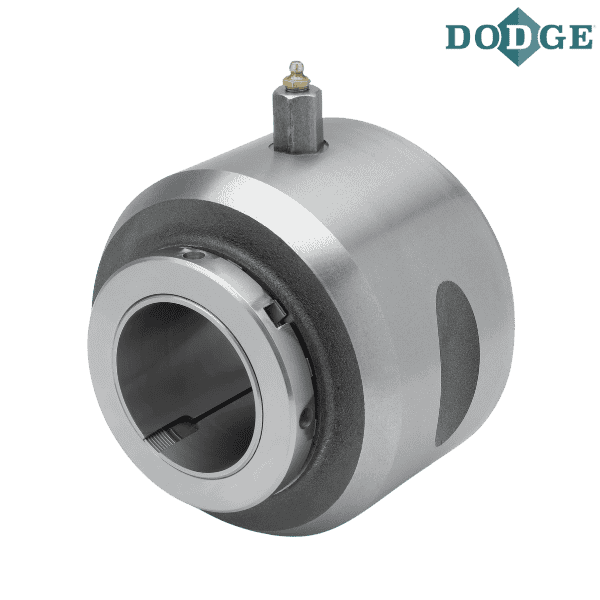

Item Number - 066486 DODGE - DU-SD-908
Category - Special Duty D Units (Non-Expansion)
Shaft Size (inch) - 9.5
Part Name - DU-SD-908
Approximate Weight (lbs) - 1380
Length Through Bore (A) inch - 17
Overall Width (B) inch - 11.5
F (inch) - 11.75
Hex (G) inch - 1
L (inch) - 14.63
N (inch) - 14.5
O (inch) - 24.000 (+.000 -.004”)
P (inch) - 23.5
R (inch) - 8.5
S (inch) - 8.5
Notes :
DU - D Unit, Cast Iron
SD - Special Duty
** Images are for representation purposes only
