Description
Brand - DODGE
Item Number - 066482 DODGE - DU-SD-715
Category - Special Duty D Units (Non-Expansion)
Shaft Size (inch) - 7.9375
Part Name - DU-SD-715
Approximate Weight (lbs) - 800
Length Through Bore (A) inch - 14.5
Overall Width (B) inch - 9.94
F (inch) - 10.06
Hex (G) inch - 1
L (inch) - 12.5
N (inch) - 12.5
O (inch) - 20.125 (+.000 -.004”)
P (inch) - 19.13
R (inch) - 7.25
S (inch) - 7.25
Notes :
DU - D Unit, Cast Iron
SD - Special Duty

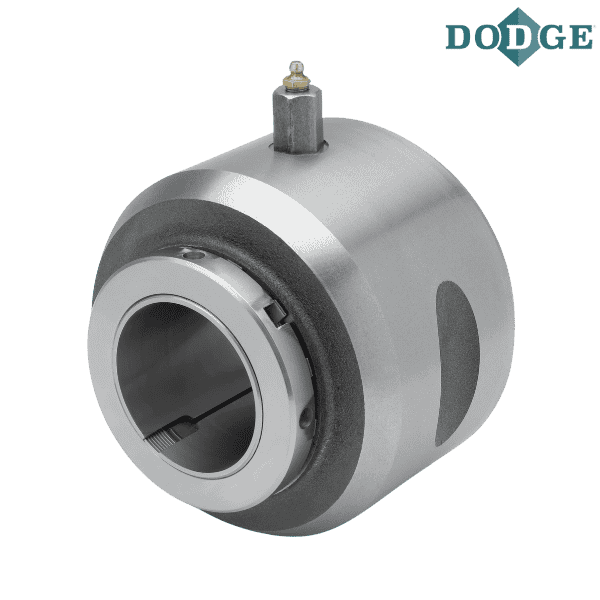

** Images are for representation purposes only
