Description
Brand - DODGE

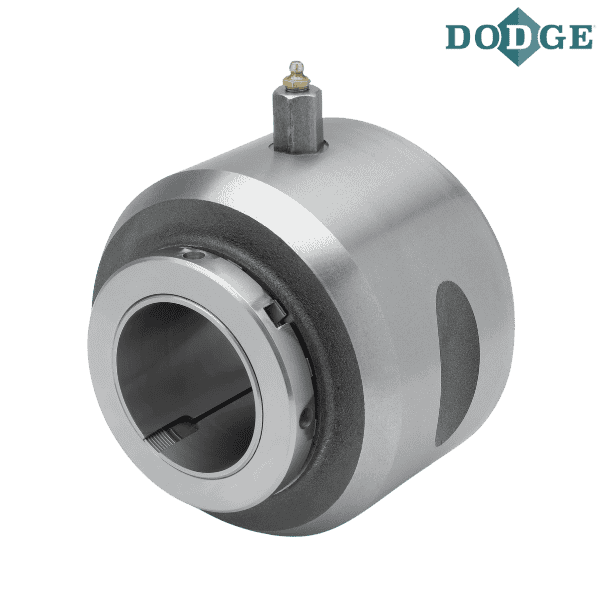

Item Number - 066479 DODGE - DU-SD-615
Category - Special Duty D Units (Non-Expansion)
Shaft Size (inch) - 6.9375
Part Name - DU-SD-615
Approximate Weight (lbs) - 560
Length Through Bore (A) inch - 13.5
Overall Width (B) inch - 9.31
F (inch) - 9.81
Hex (G) inch - 1
L (inch) - 11
N (inch) - 10.88
O (inch) - 18.000 (+.000 -.004”)
P (inch) - 17
R (inch) - 6.75
S (inch) - 6.75
Notes :
DU - D Unit, Cast Iron
SD - Special Duty
** Images are for representation purposes only
