Description
Brand - DODGE
Item Number - 066476 DODGE - DU-SD-600
Category - Special Duty D Units (Non-Expansion)
Shaft Size (inch) - 6
Part Name - DU-SD-600
Approximate Weight (lbs) - 300

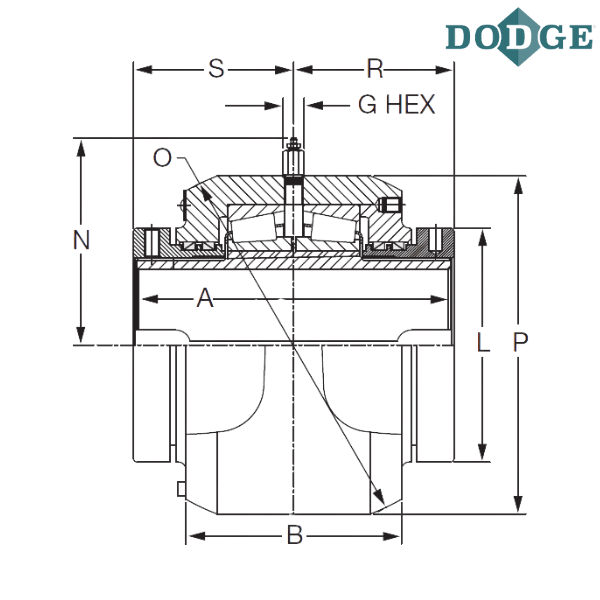

Length Through Bore (A) inch - 12
Overall Width (B) inch - 8.5
Hex (G) inch - 0.75
L (inch) - 9.5
N (inch) - 8.56
O (inch) - 14.750 (+.000 -.004”)
P (inch) - 14.13
R (inch) - 6
S (inch) - 6
Notes :
DU - D Unit, Cast Iron
SD - Special Duty

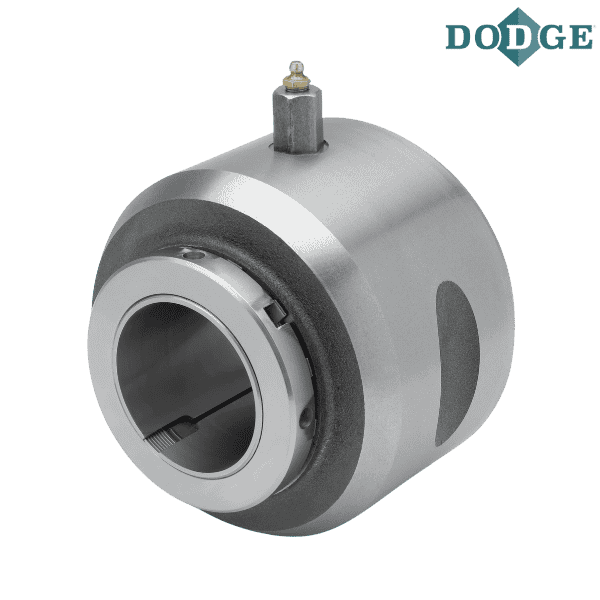

** Images are for representation purposes only
