066389 DODGE - P4B-SD-800

Brand - DODGE
Item Number - 066389 DODGE - P4B-SD-800
Category - 4-Bolt Base Special Duty Pillow Block - Inch (Gray Iron Expansion)
Shaft Size (inch) - 8
Part Name - P4B-SD-800
Approximate Weight (lbs) - 1550
Length Through Bore (A) inch - 14.5
Overall Length (B*) inch - 38.75
C* (inch) - 11.25
Bolt to Bolt Minimum Distance (D min) inch - 30.5
Bolt to Bolt Maximum Distance (D max) inch - 34
Bolt Width (E) inch - 6
F-Bolt Diameter (inch) - 1.75
G* (inch) - 3.5
H* (inch) - 7
Overall Height (J) inch - 26
L (inch) - 12.5
Base to Center Height (M) inch - 12.5
P* (inch) - 25.13
R (inch) - 7.25
S (inch) - 7.25
Exp** (inch) - 1.5
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
P4B - Pillow Block 4-Bolt, Cast Iron
SD - Special Duty

* These are as cast surfaces. Dimensions may fluctuate due to draft angles and pattern shifts

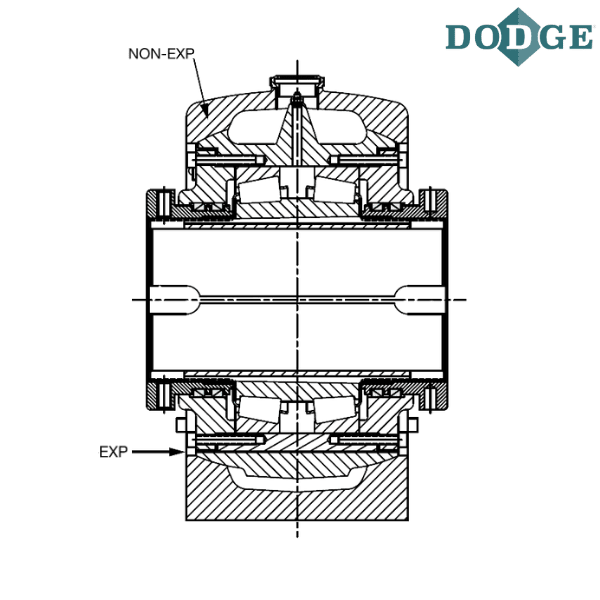

** Total Expansion for Expansion Bearing only

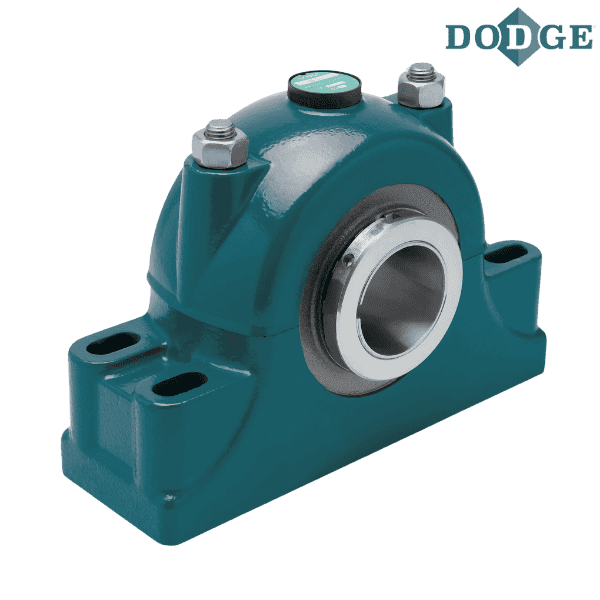

*** Images are for representation purposes only
