066385 DODGE - P4B-SD-615

Brand - DODGE
Item Number - 066385 DODGE - P4B-SD-615

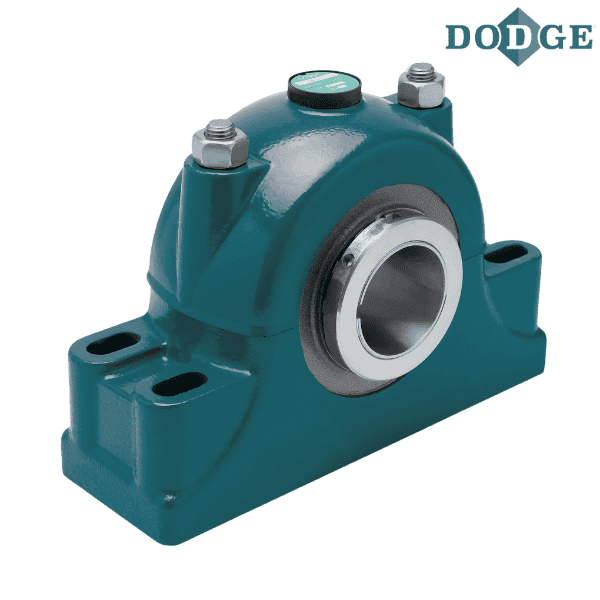

Category - 4-Bolt Base Special Duty Pillow Block - Inch (Gray Iron Expansion)
Shaft Size (inch) - 6.9375
Part Name - P4B-SD-615
Approximate Weight (lbs) - 1050

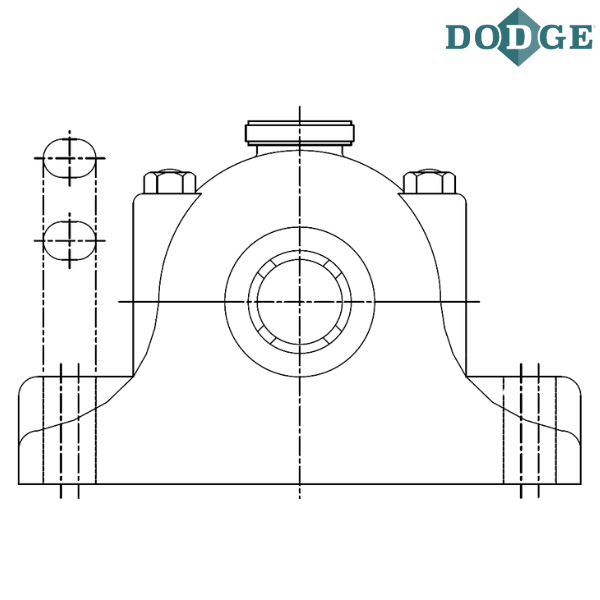

Length Through Bore (A) inch - 13.5
Overall Length (B*) inch - 34.38
C* (inch) - 10.25
Bolt to Bolt Minimum Distance (D min) inch - 27.5
Bolt to Bolt Maximum Distance (D max) inch - 30.5
Bolt Width (E) inch - 5.5
F-Bolt Diameter (inch) - 1.5
G* (inch) - 3
H* (inch) - 6
Overall Height (J) inch - 23
L (inch) - 11
Base to Center Height (M) inch - 11.25
P* (inch) - 22.75
R (inch) - 6.75
S (inch) - 6.75
Exp** (inch) - 1.5
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
P4B - Pillow Block 4-Bolt, Cast Iron
SD - Special Duty

* These are as cast surfaces. Dimensions may fluctuate due to draft angles and pattern shifts

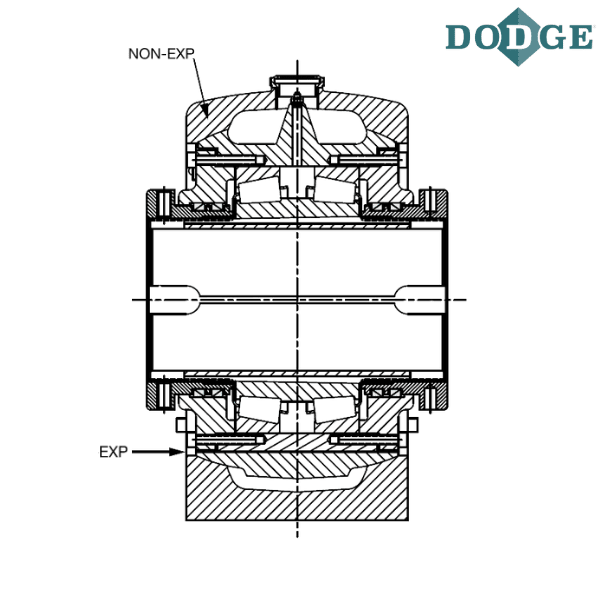

** Total Expansion for Expansion Bearing only

*** Images are for representation purposes only
