066370 DODGE - P4B-SD-306

Brand - DODGE
Item Number - 066370 DODGE - P4B-SD-306
Category - 4-Bolt Base Special Duty Pillow Block - Inch (Gray Iron Expansion)
Shaft Size (inch) - 3.375
Part Name - P4B-SD-306
Approximate Weight (lbs) - 122

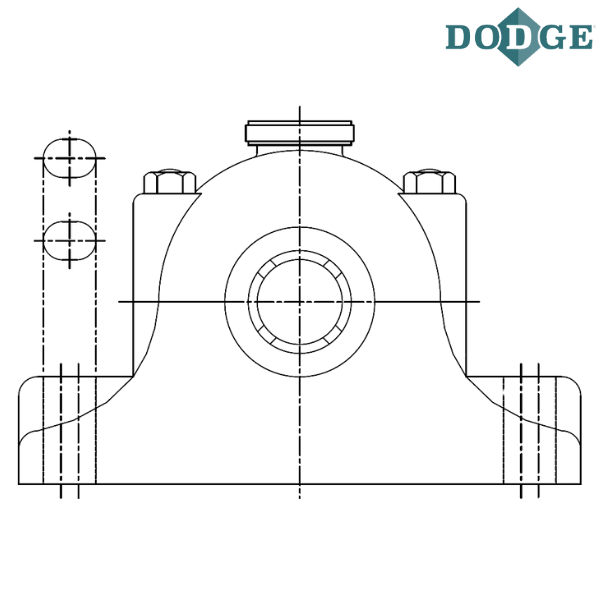

Length Through Bore (A) inch - 6.38
Overall Length (B*) inch - 16.75
C* (inch) - 5.5
Bolt to Bolt Minimum Distance (D min) inch - 13
Bolt to Bolt Maximum Distance (D max) inch - 14.5
Bolt Width (E) inch - 3.25
F-Bolt Diameter (inch) - 0.75
G* (inch) - 1.5
H* (inch) - 4
Overall Height (J) inch - 11.38
L (inch) - 5.06
Base to Center Height (M) inch - 5.5
P* (inch) - 10.25
R (inch) - 2.94
S (inch) - 3.44

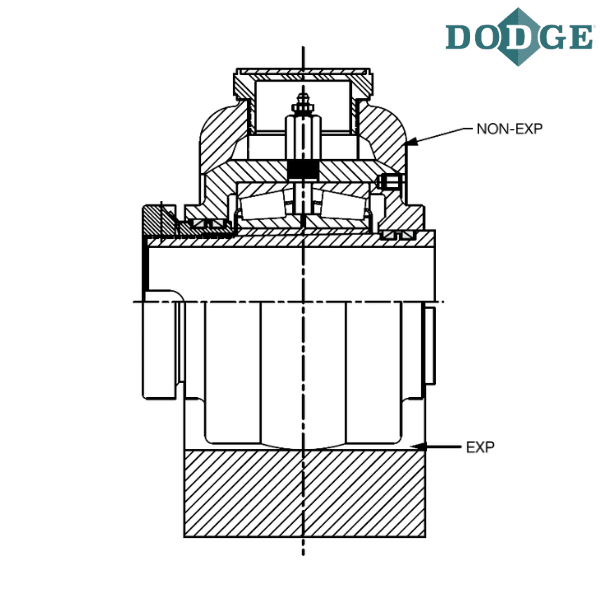

Exp** (inch) - 0.75
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
P4B - Pillow Block 4-Bolt, Cast Iron
SD - Special Duty

* These are as cast surfaces. Dimensions may fluctuate due to draft angles and pattern shifts
** Total Expansion for Expansion Bearing only

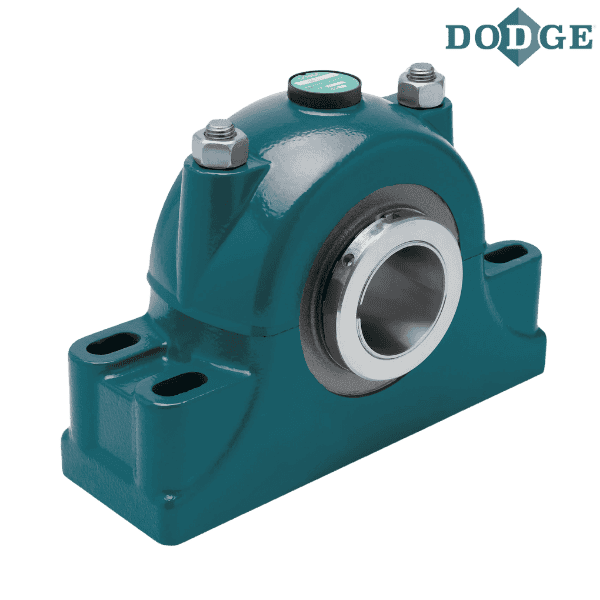

*** Images are for representation purposes only
