Description
Brand - DODGE
Item Number - 066325 DODGE - DU-SD-415
Category - Special Duty D Units (Non-Expansion)
Shaft Size (inch) - 4.9375
Part Name - DU-SD-415
Approximate Weight (lbs) - 175

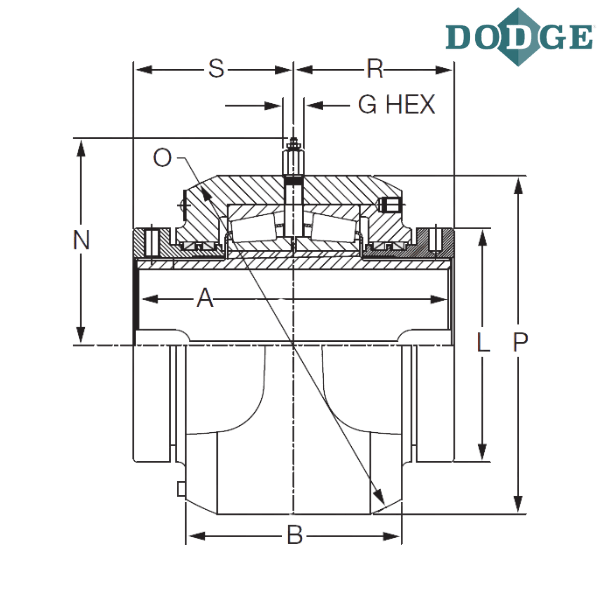

Length Through Bore (A) inch - 10.5
Overall Width (B) inch - 7.38
Hex (G) inch - 0.75
L (inch) - 8
N (inch) - 7.44
O (inch) - 12.500 (+.000 -.003”)
P (inch) - 11.88
R (inch) - 5.25
S (inch) - 5.25
Notes :
DU - D Unit, Cast Iron
SD - Special Duty

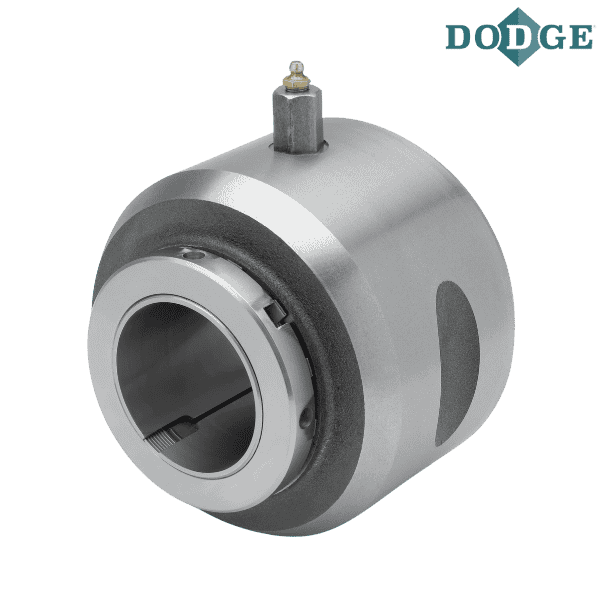

** Images are for representation purposes only
