Description
Brand - DODGE

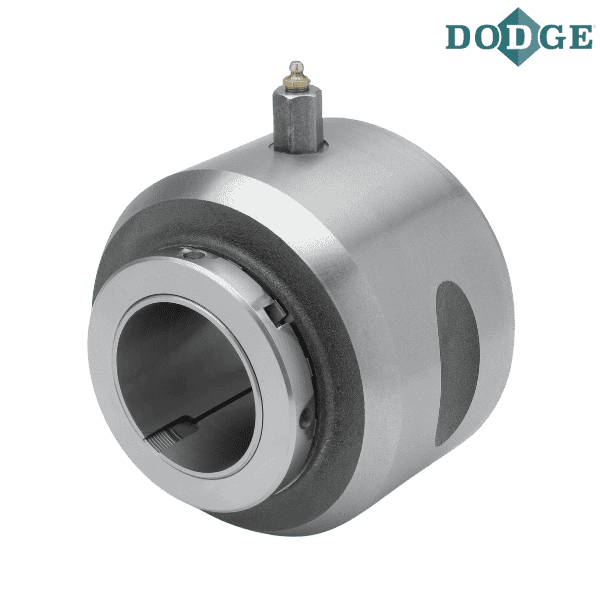

Item Number - 066324 DODGE - DU-SD-110
Category - Special Duty D Units (Non-Expansion)
Shaft Size (inch) - 1.625
Part Name - DU-SD-110
Approximate Weight (lbs) - 10

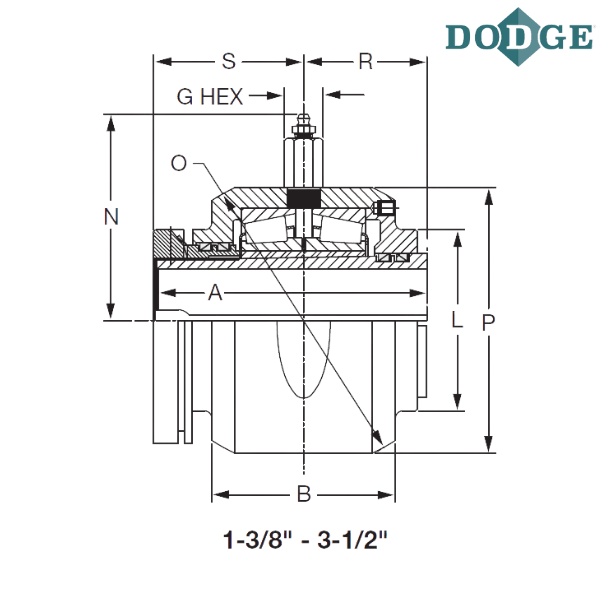

Length Through Bore (A) inch - 4.13
Overall Width (B) inch - 3.13
Hex (G) inch - 0.4375
L (inch) - 2.81
N (inch) - 2.75
O (inch) - 5.000 (+.000 -.002”)
P (inch) - 4.5
R (inch) - 1.88
S (inch) - 2.25
Notes :
DU - D Unit, Cast Iron
SD - Special Duty
** Images are for representation purposes only
